INFORMATION
Link zum Guide: https://minimidi.world/?

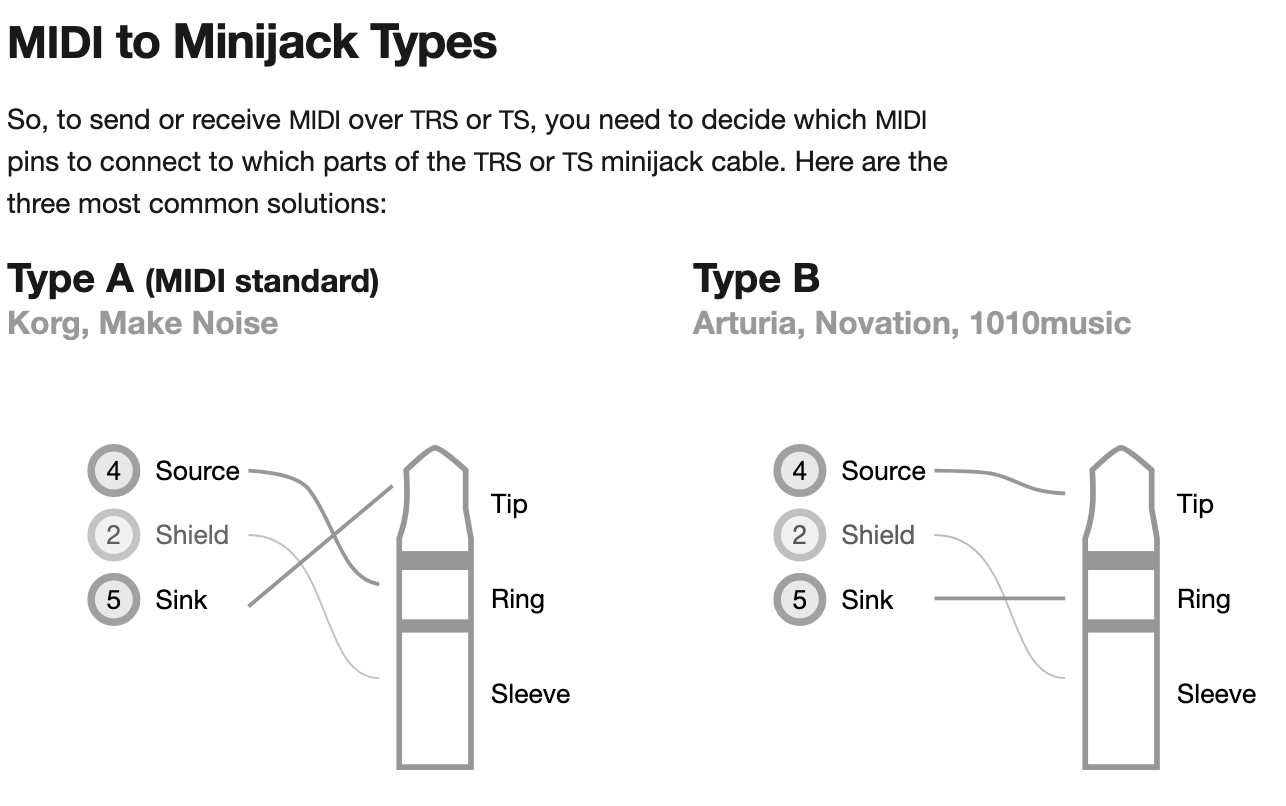

MIDI to Minijack Types
So, to send or receive MIDI over TRS or TS, you need to decide which MIDI pins to connect to which parts of the TRS or TS minijack cable. Here are the three most common solutions:
TRS MIDI Type A (MIDI standard)
Ableton Push 3Akai Pro (MPC Studio, MPC Touch, MPX8)
Boss (RC-5/500)
Critter & Guitari (Organelle M)
Dreadbox (Lil’ Erebus)
IK Multimedia (bei iRig Pro, iRig Pro DUO allerdings mit 2,5 mm)
littleBits (MIDI Module)
Korg (Electribe 2, SQ1, NTS-1)
Line 6
Make Noise (0-Coast)
Rerokits RK-006
Roland
Teenage Engineering (OP-Z oplab)
Twisted Electrons
MIDI 4 (Source) > TRS RING MIDI 2 (Shield) > TRS SLEEVE MIDI 5 (Sink) > TRS TIP
Used by manufacturers like Korg, Make Noise, Akai, and IK Multimedia (iRig MIDI 1). In 2018, it became the MIDI standard
The first known use of MIDI over TRS (the Line 6 MIDI Mobilizer in 2010) connected this way.
TRS MIDI Type B
Arturia (BeatStep Pro)
Novation (Circuit, Circuit Mono Station, Launchpad Pro — bei neueren Gräten aber TRS-A)
Polyend (Poly 2, Tracker)
Pittsburgh Modular (Liveforms SV-1)
1010music
MIDI 4 (Source) > TRS TIP MIDI 2 (Shield) > TRS SLEEVE MIDI 5 (Sink) > TRS RING
Used by manufacturers like Arturia (BeatStep Pro), Novation (Launchpad Pro), and 1010music.
TS (AKA Type C, Non-TRS) (TS MIDI C)
Expert Sleepers, Beatstep (Original), MFBMIDI 4 (Source) > TS TIP MIDI 5 (Sink) > TS SLEEVE
Uses a mono minijack.
