MotU LP32

Hersteller: MotU

Weitere Informationen:
http://motu.com/products/avb/lp32

UVP 799,00 CHF

670,00 CHF

  • Lieferzeit wird beim Importeur angefragt


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

The LP32 is a flexible ADAT optical "lightpipe" audio interface, router, splitter, converter and mixer with AVB/TSN networking. It is ideal for routing optical digital audio in live performance systems, network installations or recording studios of any size.

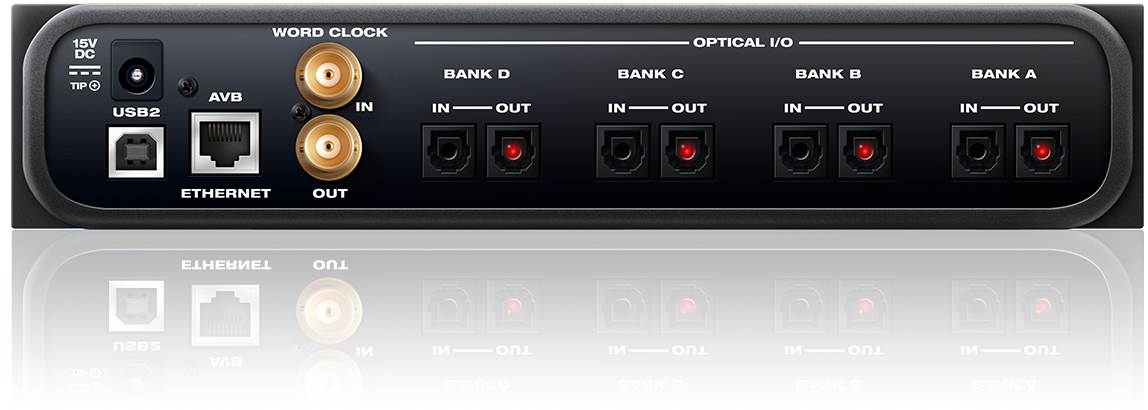

32 channels of ADAT "lightpipe" I/O



The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels.





High-performance computer connectivity



New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the LP32 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).




A flexible digital converter, router, splitter and repeater



Send any input to any output, or split to multiple output channels. Convert any format to any other (Optical, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.





DSP mixing and effects processing



The LP32's 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including classic reverb, EQ modeled after British analog console EQs and compression modeled after the legendary LA-2A compressor. If you know your way around a large-format mixing console, you'll feel right at home. With 32-bit floating point processing, the LP32's DSP engine delivers virtually unlimited headroom and the utmost in sound quality.




Stand-alone operation with wireless control



Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.





Web app control



The software that you use to control the LP32 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the LP32's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer.





Word Clock



Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync.

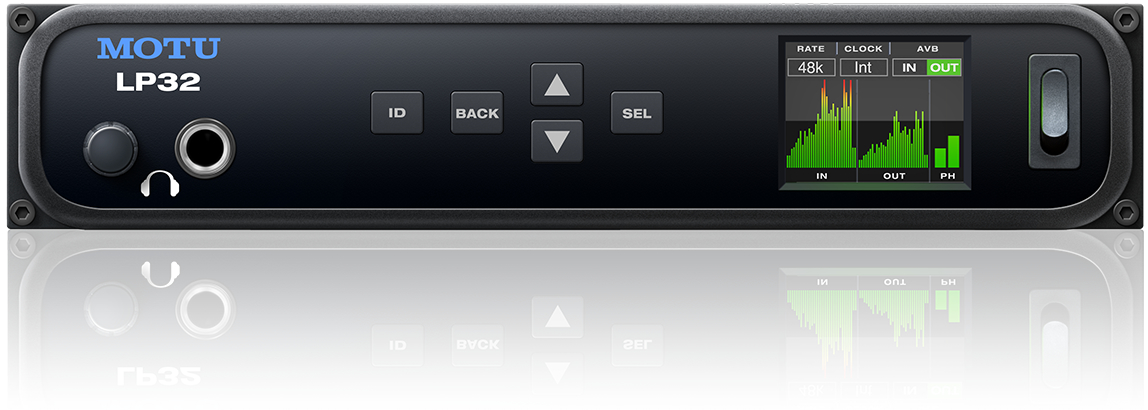

Convenient headphone monitoring



Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.





Mix and match with other MOTU gear



An included mounting bracket kit joins the LP32 side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.





System expansion / networking



Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable.

Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).


Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.





Audio analysis tools



Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer.





AudioDesk



Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering


Weitere Informationen: http://motu.com/products/avb/lp32
