Ortofon Concorde MKII Digital Twin Set

Name: Ortofon Concorde MKII Digital Twin Set
Brand: Ortofon
Price: 257 CHF

Hersteller: Ortofon

Weitere Informationen:
http://www.ortofon.com/digital-p-825-n-1444

UVP 257,00 CHF

257,00 CHF

zzgl. Versandkosten

Lieferzeit an Lager (31.08.2023)

Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

an Lager (30.08.2023)

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding

• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Concorde DIGITAL technical data

Stylus Type Spherical
Tracking Force 4.0 g
Output Voltage 10 mV
Frequency Range 20–18.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g

Cartridge weight - 18,5 g
Replacement stylus unit - DIGITAL

Spares:

Concorde DIGITAL is available in following configurations:

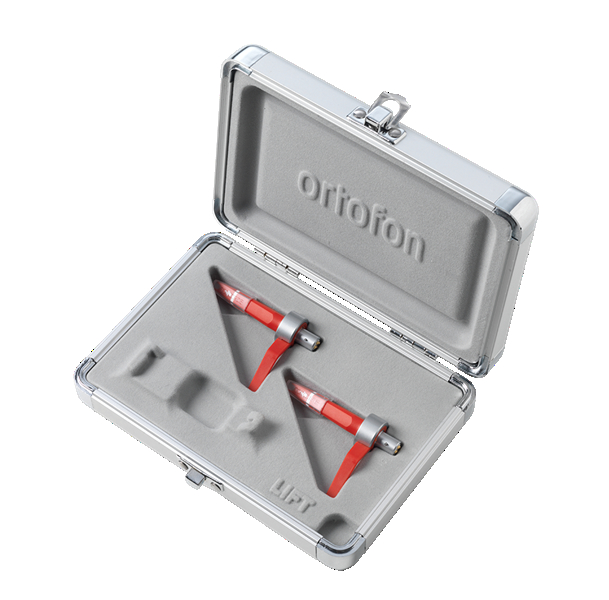

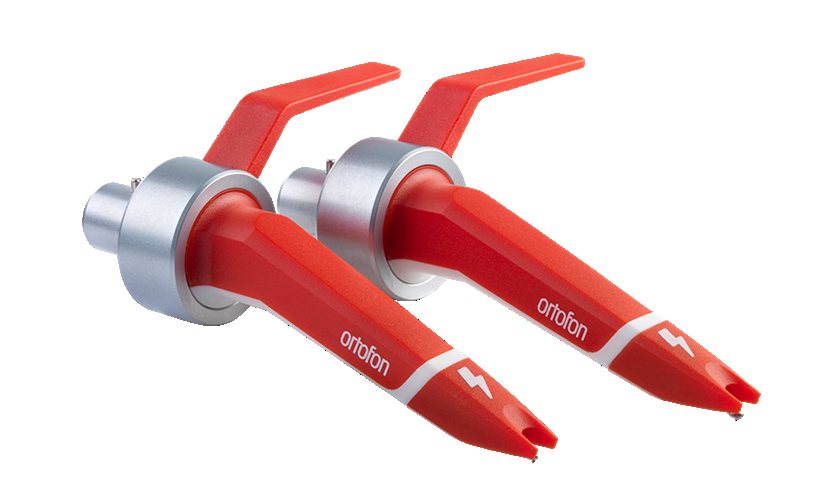

• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case
• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)

Spares:

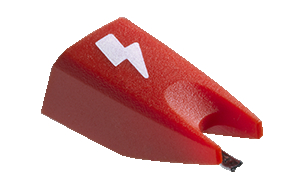

• Stylus DIGITAL
• Styli protection guards for Concorde MkII, pair

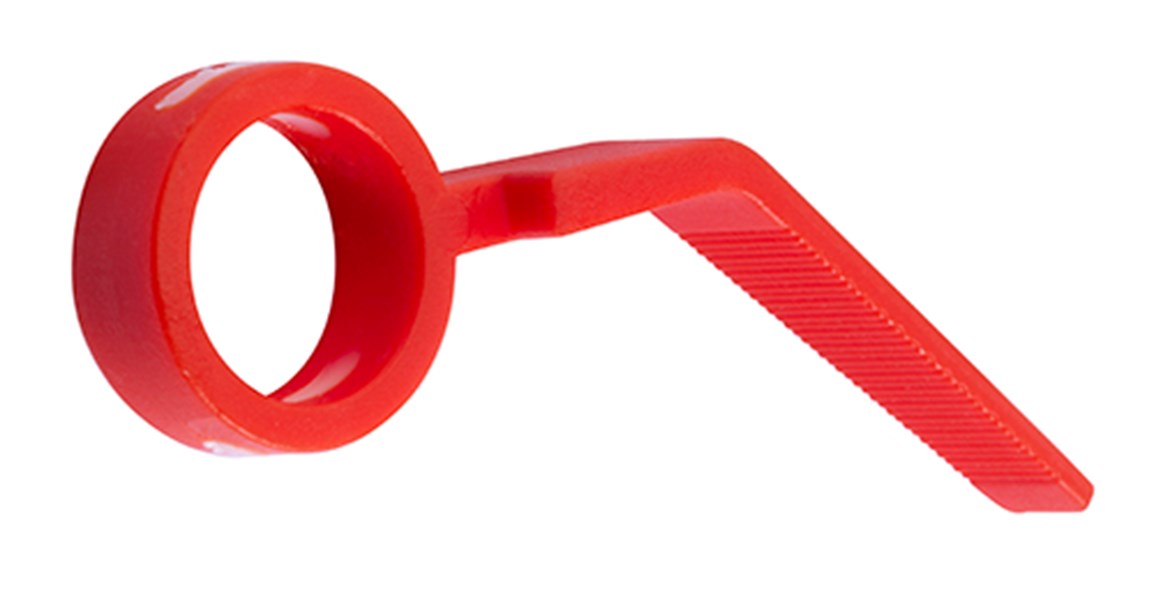

• Finger lift for Concorde MkII

Weitere Informationen: http://www.ortofon.com/digital-p-825-n-1444

Empfohlenes Zubehör
