dbx 266 XS

Hersteller: DBX

UVP 190,00 CHF

170,00 CHF

  • Lieferzeit wird beim Importeur angefragt


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

Most compressor/gates provide less than musical compression, coupled with gating that swallows transients—or closes early, cutting off decay and reverb tails. The superb engineering in the 266XS ensures that both its compression and gating provide versatility and excellent sonic performance in situations where other compressor/gates typically produce undesirable processing artifacts.



When using the 266XS’s AutoDynamic™ Attack and Release controls, artists and engineers will find that the center settings deliver classic dbx compression, while the full control range produces voicings that extend from slow “leveling” to aggressive “peak” limiting.



The Auto Dynamic™ circuitry continuously adjusts the actual attack and release times to optimally match the program material. Since users aren’t restricted to using the Attack and Release controls only in “peak” operation, they can tailor the response of the 266XL for individual tracks, mixed program material, special effects or system protection. As a result, production studios can use the versatile 266XL to replace multiple “single-purpose” limiters while sound reinforcement users can standardize on the 266XS for all of their applications.



The 266XS’s advanced gate circuitry uses a completely new, program-dependent timing algorithm to produce ultra-smooth release characteristics—even with complex signals, such as voice or reverb decays. dbx engineers went on to take advantage of the wide dynamic range and high precision of the dbx® VCA to design in an extra-wide threshold range and ensure top gating performance for each application.



Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup, while the 266XS’s intuitive operation lets users easily smooth uneven levels, add sustain to guitars, squash drums or tighten up mixes. In Stereo couple mode, the Channel 1 controls become Master controls, and Channel 2 follows precisely to ensure a rock solid stereo image—even with high amounts of compression. Professionals and newcomers will find that the 266XS sets up rapidly and musically the first time it is used, and every time thereafter.



The dbx® 266XS processor is the result of an intensive engineering and product development effort aimed at taking advantage of the latest and best advances in manufacturing technology to deliver true dbx audio performance and reliability to our customers at the lowest possible cost. The 266XS puts a completely new level of compressor/gate performance within everyone’s reach.




Features:



  • Goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
  • New gate timing algorithms ensure the smoothest release characteristics
  • Program-adaptive expander/gates
  • Great sounding dynamics control for any type of program material

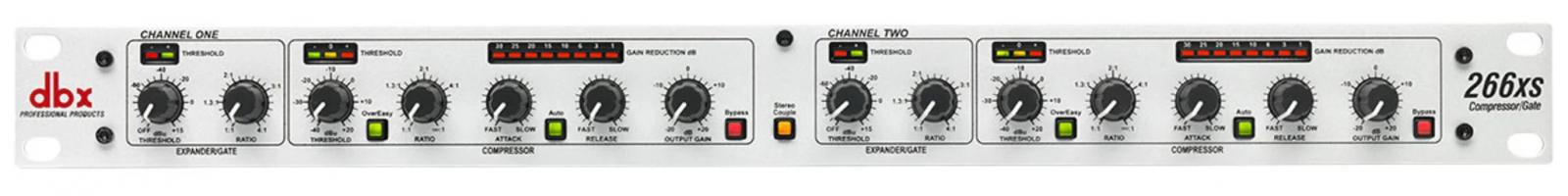

  • Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
  • Stereo or dual-mode operation

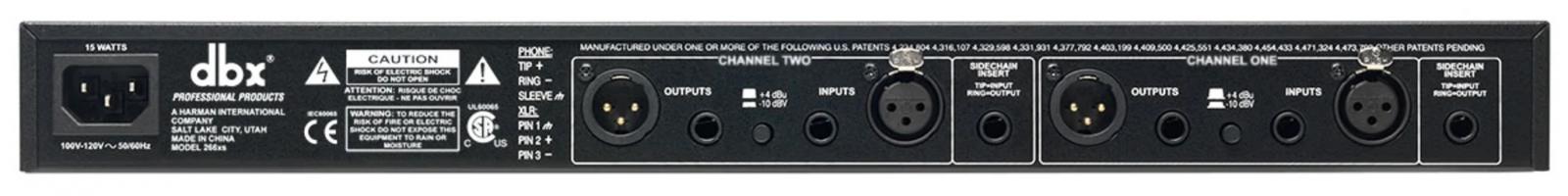

  • Balanced inputs and outputs on 1/4" TRS and XLR
  • Side Chain insert
  • Classic dbx® "Auto" mode







Tech Specs:



Frequency Response

Flat: 20Hz-20kHz, +0, -0.5dB

Bandwidth: 0.35Hz-80kHz, +0, -3dB

Input Impedance: 40kΩ Balanced/Unbalanced

Max Level: +22dBu

OUTPUT:

Impedance: Balanced +4dBu: Balanced: 200Ω, Unbalanced: 100Ω

Max Level: +21dBu into 600Ω

SIDECHAIN INSERT:

Input Impedance: >10kΩ

Output Impedance: ≤2kΩ

Max Level: +21dBu

Distortion +Noise: <0.2% any amount of compression at 1kHz

SYSTEM PERFORMANCE:

Intermodulation
Distortion: <0.2% SMPTE

Noise: <-93dBu unweighted

Dynamic Range: >114dB, unweighted

Crosstalk: <-93dB @ 1kHz

Common Mode:
Rejection: >40dB (Any Frequency)

Stereo Coupling: True RMS Power Summing™

Threshold:
Chracteristics: Selectable OverEasy® or hard knee

Exp/Gate: Program Dependent Threshold
Compressor: -40 to +20dB
Expander/Gate: -60 to + 10 dB

Ratio: Compressor: 1:1 to ∞:1
Expander/Gate 1:1 to 4:1

ATTACK TIME:

Compressor: Scalable Program Dependent

Expander/Gate: <100 µsec

RELEASE TIME:

Compressor: Scalable Program Dependent

Expander/Gate: Program Depenedent

POWER:

Power Consumption: 15watts, 100 VAC 50/60 Hz, 120 VAC 60 Hz, 230 VAC 50/60 Hz

PHYSICAL:

Dimensions: (H x W x D) 1.75"x5.75"x19" (4.45cm x14.6cm x 48.5cm)

Weight: Net Weight: 5 lbs. (2.3 kg);
Shipping weight: 7 lbs (3.2 kg)

Note: Specifications subject to change without notice.
