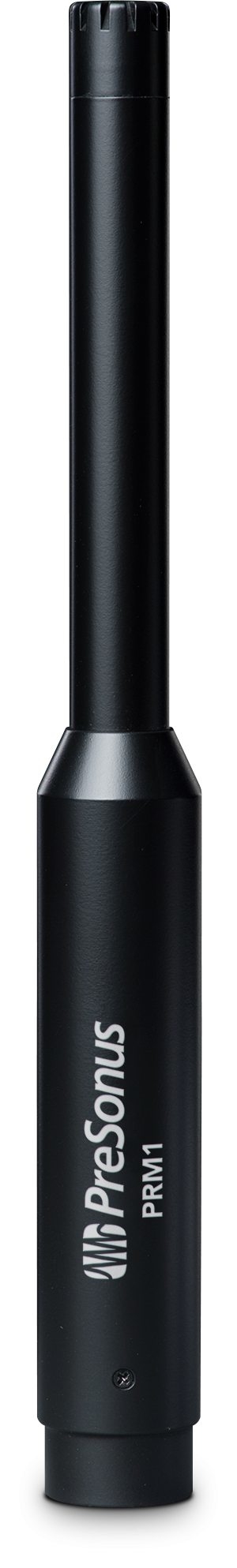

Presonus PRM1
Hersteller: Presonus
Weitere Informationen:
http://www.presonus.com/products/prm1
110,00 CHF
Produktbeschreibung
A professional measurement tool.
The PRM1 Precision Reference Microphone is a special type of microphone that provides an accurate reproduction of a room's sound characteristics for use with audio-analysis tools. It employs a ¼”, pre-polarized electret-condenser capsule with an omnidirectional polar pattern, which allows the microphone to measure reflections, as well as direct signals up to 132 dB SPL. The PRM1 has an all-metal chassis and comes with a clip, foam windscreen, and hard case.
What makes the PRM1 different from most mics?
Unlike mics you use for recording and live sound, the PRM1 has a narrow dynamic range, since it is intended to receive test frequencies, such as pink noise, at a fixed level. As a result, it is not recommended for recording or performance—but it’s the right mic for tuning a sound system to perform accurately in a venue. The PRM1 exhibits linear (“flat”) frequency response between 20 Hz and 20 kHz, meaning it captures all frequencies equally within that range. Since it neither boosts nor cuts frequencies, it doesn’t color the sound, making it ideal for measuring what a room or speaker is doing to a sound system’s outgoing signal.
Designed for use with Smaart and other audio analysis tools.
While the PRM1 can be used for a variety of measurement applications, such as MLSSA™, Spectrafoo™, and TEF™, it is especially recommended for use with the Smaart® System Check wizards that are integrated into PreSonus® UC Surface control software for StudioLive® AI and StudioLive RM mixers. With this combination, you can have a complete, powerful, and affordable, audio-analysis and correction system.
Technical Specifications
General
Type Black electret condenser
Element Pressure, FET preamplifier
Polar Pattern Omnidirectional
Performance
Frequency Response 20 Hz to 20 kHz
Sensitivity (@ 1 kHz open-circuit voltage) -37 dB/Pa (14 mV/Pa) 1 Pa=94 dB SPL
Rated Impedance 200Ω
Minimum Load Impedance 1,000Ω
EIN (A-weighted) 26 dB
Max. SPL (1 kΩ load) 132 dB SPL (THD ≤ 1%, 1 kHz)
Dynamic Range (1 kΩ load) 106 dB
S/N Ratio 70 dB
Connections
Connector 3-pin XLR Male
Polarity
Pin 2 output positive voltage (relative to Pin 3) when diaphragm receives positive pressure (moves inward)
Power
Phantom Power 9-52V
Current Consumption 2 mA
Physical
Length 7.56” (192 mm)
Width 0.83” (21 mm)
Weight 5.3 oz (150g)
Finish Metal, matte black
Environmental Conditions 10-50˚ C, humidity 0-95%
Weitere Informationen: http://www.presonus.com/products/prm1
