Presonus StudioLive Serie 3 SE 16

StudioLive Serie 3 SE 16

Die digitalen Mischpulte der StudioLive Series III SE liefern klaren Studio-Sound, präzise Signalverarbeitung und nahtlose Integration mit Studio One Pro und Capture – für einen durchgängigen Workflow vom Recording bis zum Mix.

Die überarbeitete Hardware bietet ein flaches Display für bessere Übersicht, neu gestaltete Faderkappen für mehr Bedienkomfort sowie Encoder mit verbessertem Drehmoment für präziseres Arbeiten.
Für die Audiovernetzung sorgt eine zuverlässige, latenzarme AVB-Übertragung mit Milan-Zertifizierung – zeitgenau und kompatibel mit Geräten anderer Hersteller.

Auch der Fat Channel wurde überarbeitet: Alle sieben EQ-Modelle sowie acht klassische Kompressoren aus der Fat Channel Collection sind neu serienmässig integriert – darunter RC500, VT1, Tube, Brit Comp und mehr. Der integrierte Digital Reverb XL wurde um Parameter wie Diffusion, Ratio, Dämpfung, Predelay und Raumgrösse erweitert. Zusätzlich lässt sich der Limiter jetzt mit einem variablen Release von 0 bis 400 ms exakt einstellen.

Mitgeliefert wird eine umfassende Software-Suite mit Studio One Pro, Capture, Metro, QMix-UC und Universal Control, die alle zentralen Funktionen für Recording, Mixing und Steuerung bereitstellt

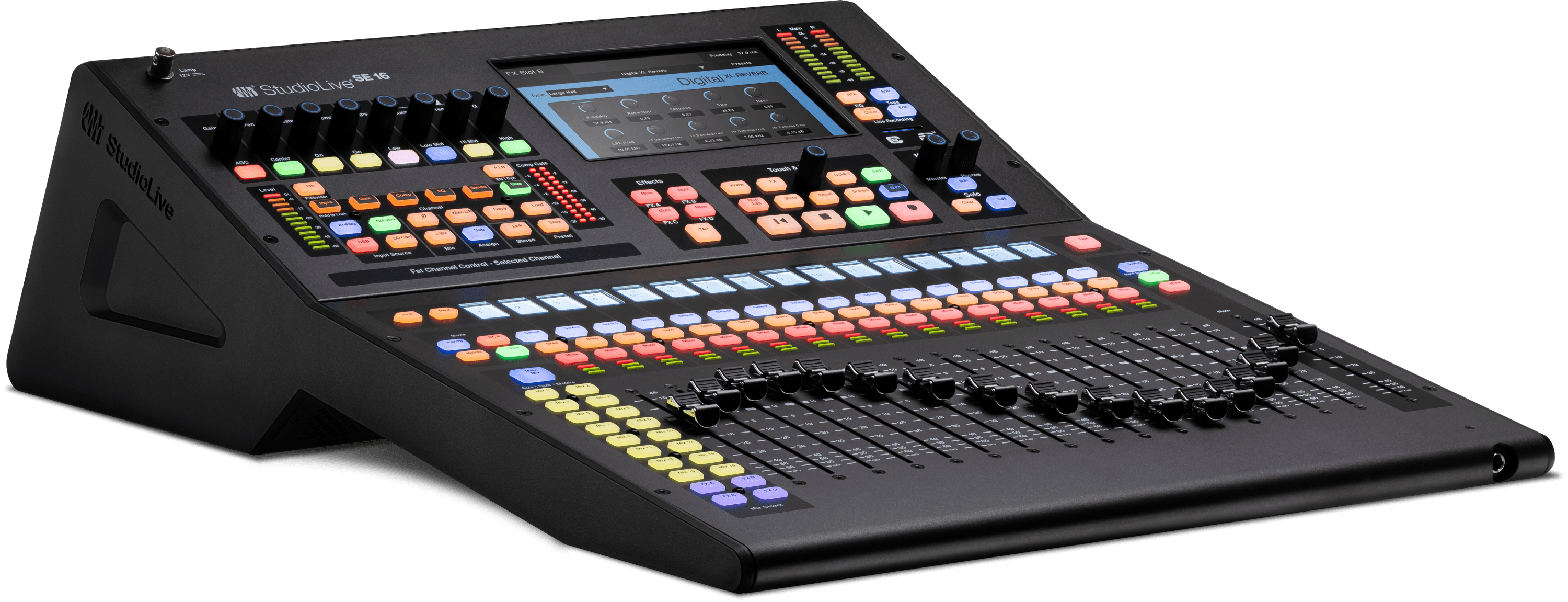

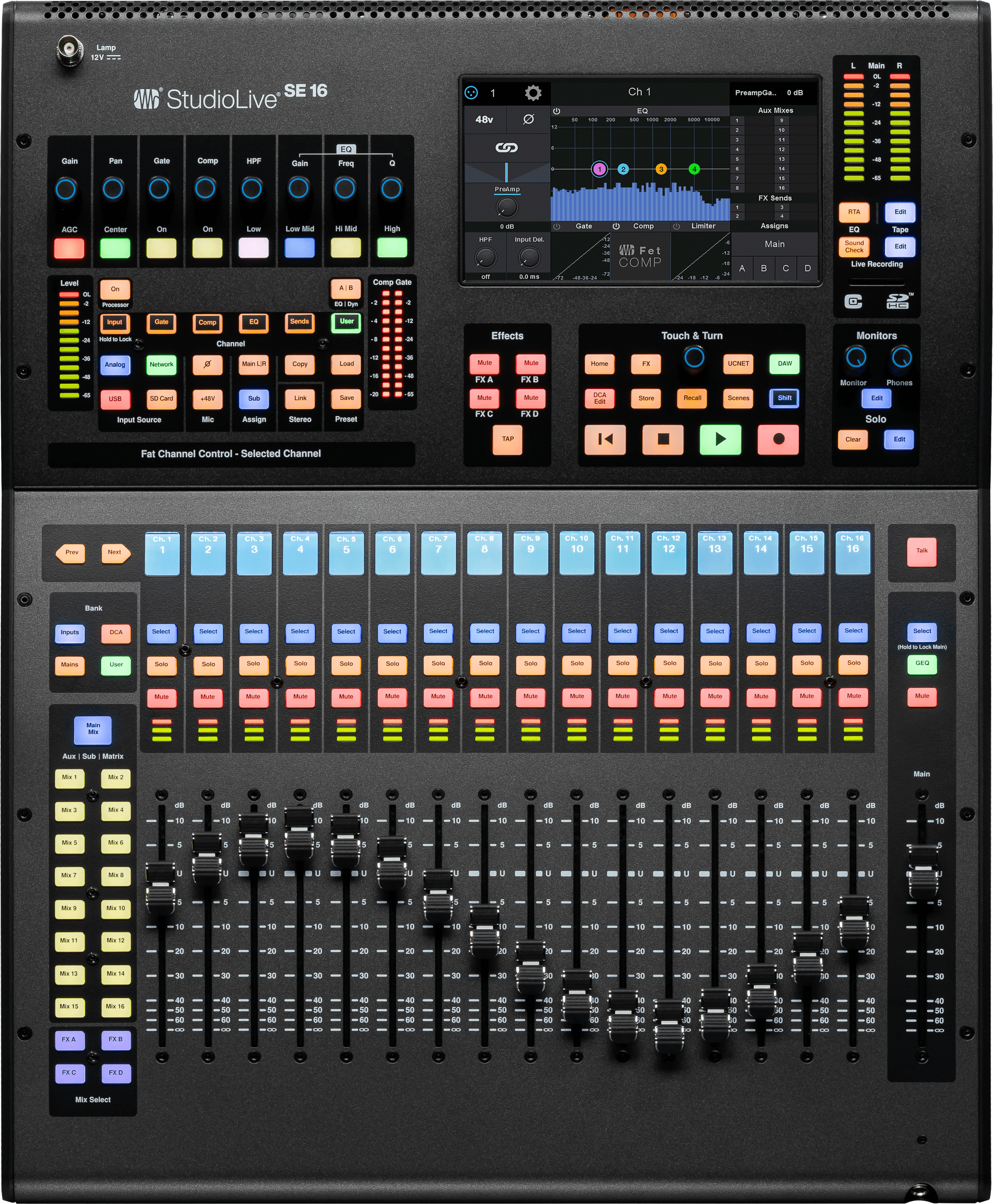

StudioLive SE 16

17 Fully recallable touch-sensitive motorized faders (16 channel + 1 Main)
Fixed Fat Channel

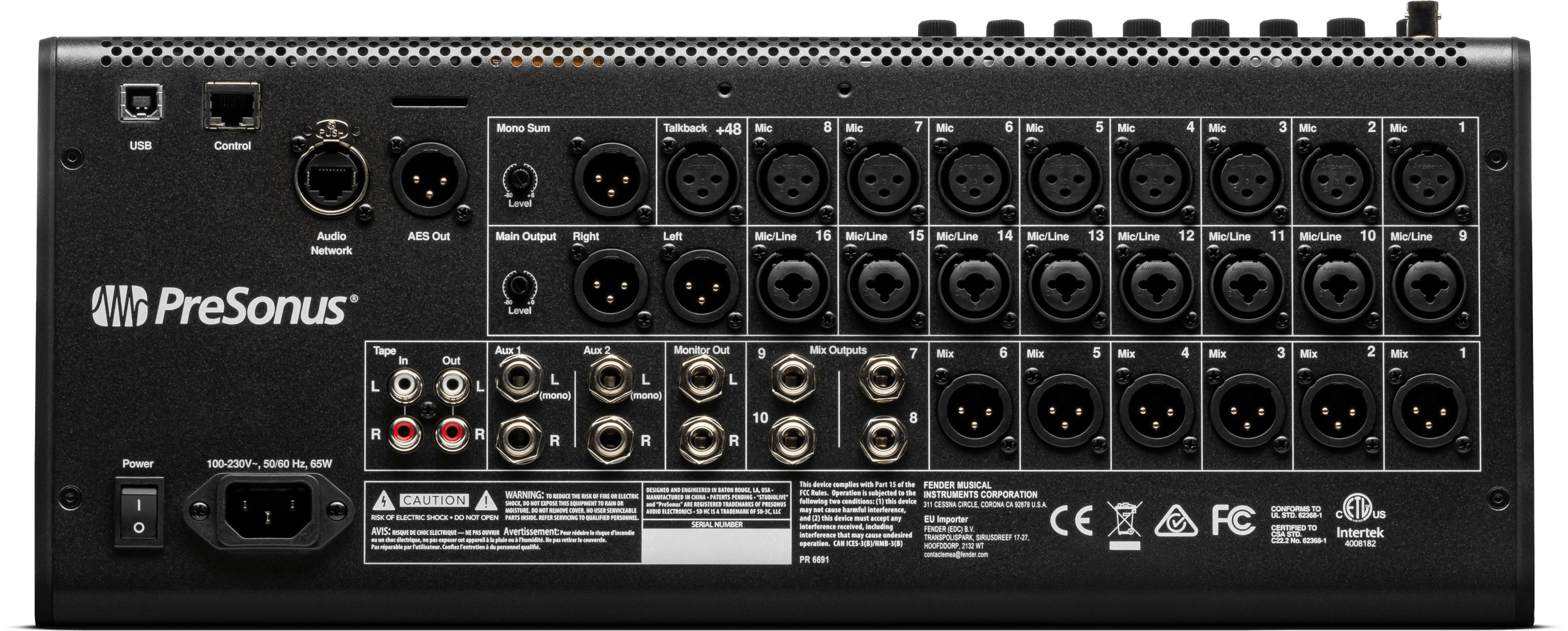

16 total mic preamps
8 (via combo) line inputs plus 2 pairs of balanced stereo ¼” Aux Inputs
10 (6 XLR, 4 1/4" TRS) total mix outputs
Portable, rack-mountable, and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.

Overview

40-channel, 26-bus digital mixer with 17 motorized faders, a 64x64 USB Audio Interface, and Milan-certified AVB Audio Networking.
Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a unique split-fader frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.

But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 16, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Studio One Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.

Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long session


 Features

    Integrated Multitrack Recording
        Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
        One-click Virtual Soundcheck with Capture
        Seamless compatibility with Studio One Pro and leading DAWs
    Pristine Studio Sound on Stage
        17 XMAX-Remote preamps for transparent analog tone and digital recall
        32-bit floating-point DSP processing
        115 dB A/D–D/A converters with ultra-low jitter clocking
    Expanded Routing and I/O
        16 FlexMixes configurable as auxes, subgroups, or matrix mixes
        AVB networking with StudioLive Stage Boxes and Milan-compatible gear
        Four dedicated effects buses, four subgroups, and 24 DCAs
    Advanced Fat Channel Processing
        Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
        All 7 EQs and 8 Compressors from the Fat Channel Collection included
        Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
        Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
    Metro™ Remote Access and Universal Control
        Control every aspect of your mix remotely—from routing to effects
        Provide technical support and reconfiguration remotely
        Use QMix®-UC for personal monitor mixing from mobile devices
    Mixing Comfort and Control
        17 touch-sensitive motorized faders deliver smooth automation and tactile mixing
        Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort



StudioLive Series III
System Requirements

To ensure proper recording and control functionality of PreSonus StudioLive Series III Mixers, the computer system must satisfy the minimum requirements listed on this page.

Windows®

    Windows 10 22H2 (64-bit only) or Windows 11 22H2 or higher (64-bit only)
    400 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
    Available USB port
    The above are the hardware system requirements for this product
    DAW software and Operating System requirements vary

macOS®

    macOS version 12 (Monterey) or later
    400 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
    Available USB port






Weitere Informationen: https://www.presonus.com/pages/studiolive
