Avantone MixCubes Aktiv, creme (Paarpreis)

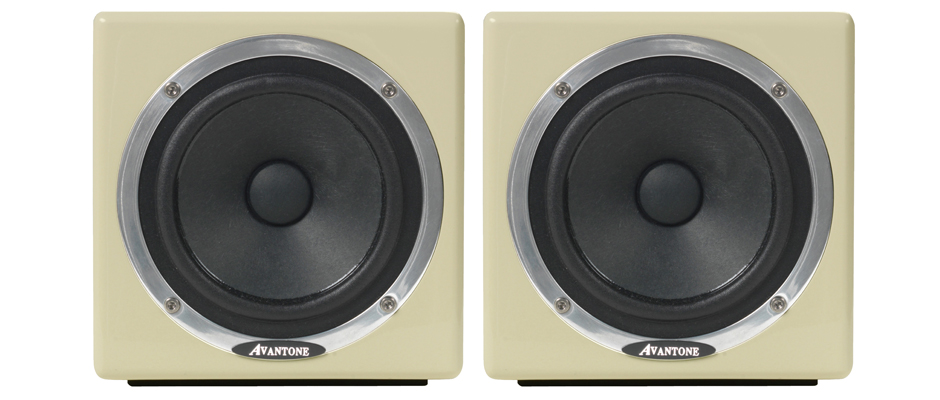

Avantone MixCubes Aktiv

Die Avantone MixCubes-A sind magnetisch geschirmte aktive Breitband Mini-Referenzmonitore für den Studiobetrieb. Inspiriert wurde der Entwickler, Ken Avant, von den legendären 5C Sound Cubes aus den 80er Jahren.Allerdings sollte nicht einfach eine weitere Replik auf den Markt gebracht werden, sondern das Konzept des Vorläufers unter Anwendung moderner Materialien und technischer Erkenntnisse deutlich verbessert werden. Das Ergebnis des neuen Designs kann sich hören lassen: Ein angenehm klingender deutlich verbesserter Lautsprecher, der es dem Anwender leicht macht, sich vom Vorgänger zu lösen. Ein transparenterer linearer Hochtonbereich und eine erweiterte Basswiedergabe, unter Beibehaltung des originalen Grundcharakters, machen den MixCube zum idealen Abhörpartner in jedem Tonstudio.

Der integrierte Verstärker wurde von Grund auf neu entwickelt. Überdimensionierte Komponenten und ein Maximum an Performance und Sicherheit lassen den Verstärker auch im Vergleich mit wesentlich teureren externen Rackverstärkern gut aussehen. Das Eingangssignal wird über eine Kombo-XLR Buchse eingespeist und kann in der Empfindlichkeit von -30 bis zu +6dB angepasst werden. Der Verstärker wird über ein externes Netzteil mit Spannung versorgt.

Hauptfeatures:

Modell MixCubes-A
Anschlüsse Combo-XLR
Impedanz 8 Ohm
Belastbarkeit/Leistung 60W
Bestückung 1x5.25" Breitbandchassis
Empfindlichkeit (1W/1m)/SPL 93dB, 104dB max. @ 1% THD
Frequenzverlauf 90Hz-17kHz
Design Breitbandsystem
Abmessungen 165x165x165mm

Engineering Objective

The Avantone Active Mixcubes are designed to be high-resolution, full-range powered mini-reference monitors for fixed or remote locations.
The secondary engineering facet was to create a timeless design that compliments a single full-range transducer.

Performance Objective

Studios primarily use 2-way & 3-way larger monitors designed to represent a wide range reference viewpoint at higher listening levels. However, in this newly developing age of High Definition Audio, there is still a need to also hear what your mix will sound like when played back over small “bass-challenged” systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc. It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers. Particular attention is always paid to the critical mid-range vocal/guitar/keyboard areas. This is where having a full-range monitor without a crossover is truly revealing. Ten months of R&D comparative listening & tweaking went into the voicing of the AVANTONE MixCubes. The result is a very smooth sounding, full range upgrade from the original 5C Sound Cubes. Listening tests reveal that the MixCubes have a smooth, more open, transparent top end response with extended bass while maintaining their basic original character.

Cabinet Design

The original 5C Sound Cubes™ were made of ½” particleboard covered with a glue-on wood grain contact paper. We chose to use thicker, denser MDF board because of its high rigidity and inherent low-resonance characteristics. We started with a 165mm (6 1/2") sealed cube design with radiused edges. We then chose an elegant Polyurethane high gloss “RETRO-CREAM” finish. The originals had either screws or on later models plastic binding posts mounted on a recessed plastic cup. We upgraded to high-end nickel plated, machined solid metal binding posts (Dual banana spacing) mounted on a black anodized ,milled and silk-screened aluminum terminal plate. Next we added a 7mm thick neoprene pad embedded into the base of the cabinet to serve as a skid-resistant acoustic isolator. Additionally, for creative mounting situations, we recessed an industry standard 5/8”-27 mic stand mount into the base.

Driver Design

The originals were a basic 5” stamped frame design. We designed a proprietary 5.25” die cast aluminum frame driver/cone assembly to exceed the performance of the originals. The mounting bezel is then polished for an elegant appearance. The paper cone, chosen for its musical character, is custom designed & crafted using the finest New Zealand pulp with mica fibers added for lighter weight & rigidity. The cloth surround is made in Japan to exacting uniform thickness tolerances. The Top Plate and T-Yoke of driver are made of Sumitomo 1008 low carbon steel enabling the highest modeled flux density in the gap. The magnets are Y- 40 GRADE (MIL-SPEC) yielding a 43oz. High Power-low distortion motor structure.

Amplifier Design

We designed the amp module from the ground up to be a true professional-grade amplifier. It incorporates “overkill” concepts in component selection as well as safety. The result is a “no-compromise” amp with robust headroom characteristics that will rival the performance of much higher priced studio rack mount amps.

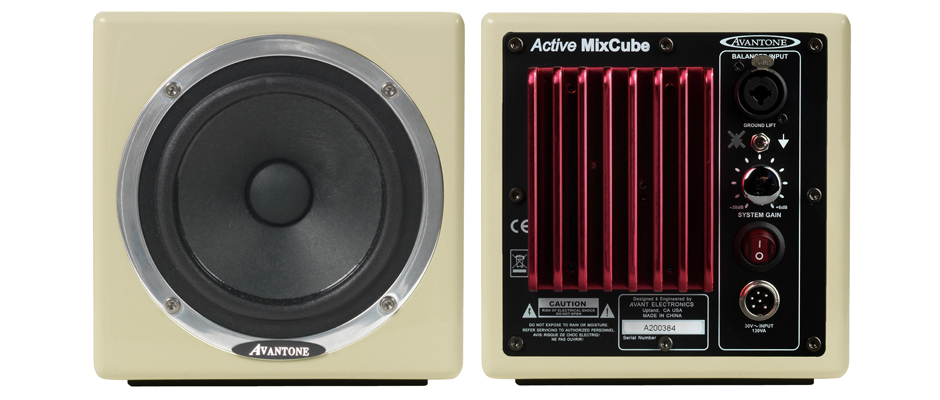

Features:

Balanced Input
This “combo XLR” input accepts a BALANCED male XLR plug as well as a 3-conductor BALANCED TRS ¼” or a 2 conductor UNBALANCED TS ¼” male plug. For unbalanced operation with a TS connector the minus signal is automatically grounded.

System Gain
This variable control adjusts the sensitivity of the signal that appears at the input. Rotating the control clockwise increases the sensitivity while a counter-clockwise rotation decreases sensitivity. The adjustable gain range is from -30 to +6 dB. A setting of +6 allows a full, unimpeded signal to be sent to the amplifier. The detented gain positions allow for repeatable settings between speakers for proper matching. Please Note… when the signal appearing at the input is too hot, the amplifier can overload causing distortion and possible damage to the speaker. If overload occurs, attenuate (decrease) the input level by turning the knob counter-clockwise a few clicks.

On/Off Switch
This illuminated switch turns the amplifier section on and off. The unit is still receiving power from the transformer however.

AC Input

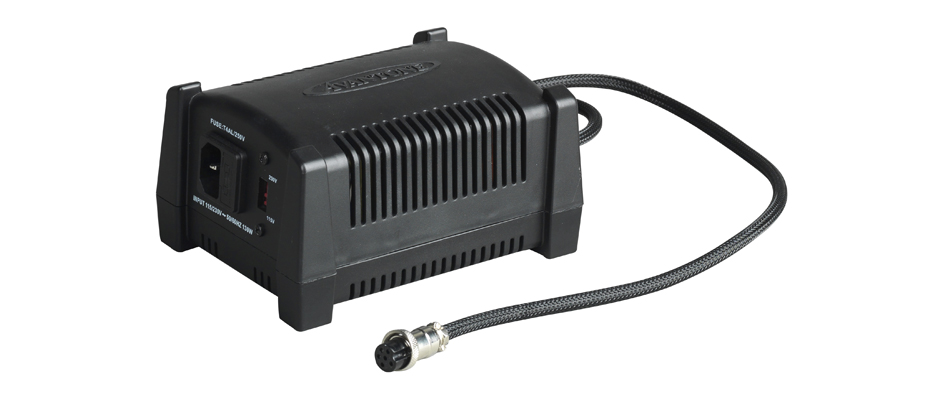

This input is only to be use with the proprietary AVANTONE Power Supply. Tighten the cable/connector securely for reliable operation. Note: There is a switch on the power supply for selecting the proper AC/MAINS operating voltage for your location.

Ground Lift Switch
By engaging this switch the pin 1 shield is lifted at the input jack. This can be used to aid in ground loop control of the incoming analog line signal.

Placement
When positioning the Avantone Active MixCubes on stands or console bridges it is best to keep them at ear level and slightly angled in towards the engineer. Since they are shielded it is ok to place them near a CRT video monitor or TV without causing any problems. The bottom mic stand mounts will also allow you creative positioning options in unusual studio playback situations.

Avantones werden auf Kundenbestellung und Vorauszahlung bestellt, keine Rückgaberecht

Paarpreis!!!

Weitere Informationen: http://www.avantonepro.com/mixcubes-active-creme.php
