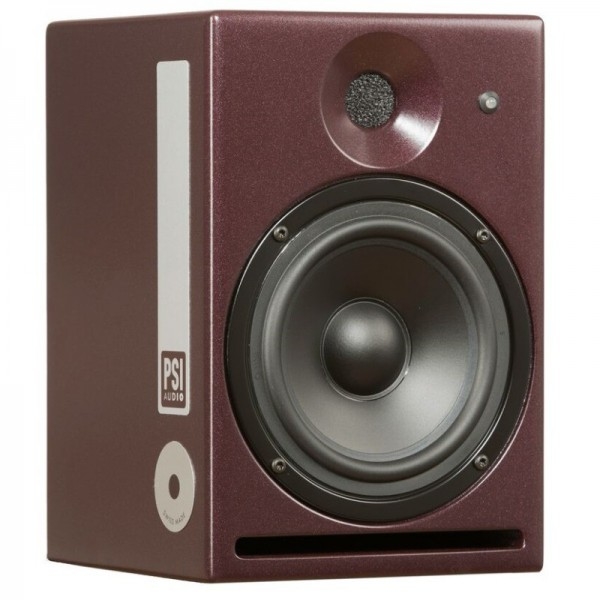

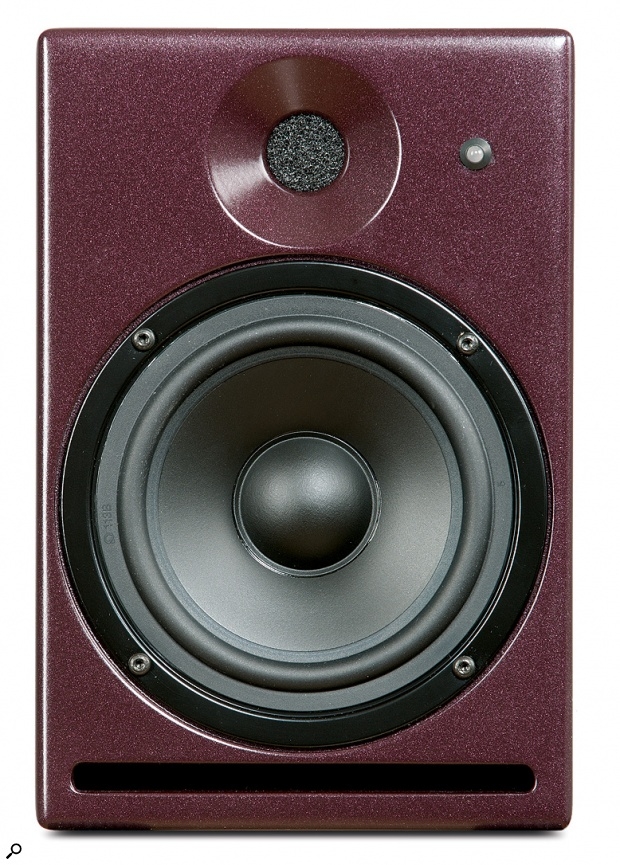

PSI AUDIO A14-M s3 Studio - Studio Red (PaarPreis)
Hersteller: PSI AUDIO
Weitere Informationen:
http://www.psiaudio.com/en/our-products/a14-m-studio/
2470,00 CHF
Produktbeschreibung
With its improved performance and even greater fidelity, the new A14-M extends the PSI Audio product range of high-precision active monitor speakers.
The new model replaces the previously externally manufactured tweeter with a specially developed driver, which is manufactured entirely in PSI Audio’s own factory. While the A14-M was already popular with smaller studios and mobile applications, the new version surpasses it once again, especially when it comes to reproducing high frequencies.
Many producers and sound creators around the world appreciate the A14-M for its exceptional sound quality, especially considering the small speaker size. With a bass-midrange driver of only 147 mm diameter, the small reference monitor produces the precise sound image with an astonishingly deep bass that is typical for the company.
The A14-M s3 (also called v3) is available from now.
Product Description
The A14-M Studio full range speaker is the smallest member of the PSI Audio A-Series professional studio monitor range. Housed in an extremely compact cabinet, the A14-M Studio is designed to implement highest possible SPL and broad bandwidth. The A14-M Studio is ideal for studio application where the ultimate in precision and portability is required. Packed into its compact dimensions, is all the technology of its larger brothers.
The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behavior with excellent stereo imaging. The crossover is also Studio optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area.
Designed to work in harmony with the full range of A series monitors the A14-M Studio also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub thus protecting your investment.
Also available: A14-M Broadcast. Equipped with protective grill, mounting bracket and front level setting to become a perfectly versatile and portable high end monitor.
Product Key Features
Flat frequency response.
Optimised directivity by phase coherency.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.
Product Data
Power RMS: 70 + 30W
Program Power: 100W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 101 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 112 dB (pair)
Response at -6dB: 56 - 22000 Hz
Tolerances: ±2.5 dB (65Hz - 18kHz)
Distortion THD: less than 1.8% (95Hz-15kHz)
Phase tolerances: ±45° (260Hz - 16kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
System: 2 Way(s)
Crossover frequency: 3.5 kHz
Woofer's dim. Ext. / Diaphragm: Ø147mm / Ø104mm
Tweeter's dim. Ext. / Diaphragm: Ø70mm / Ø24mm

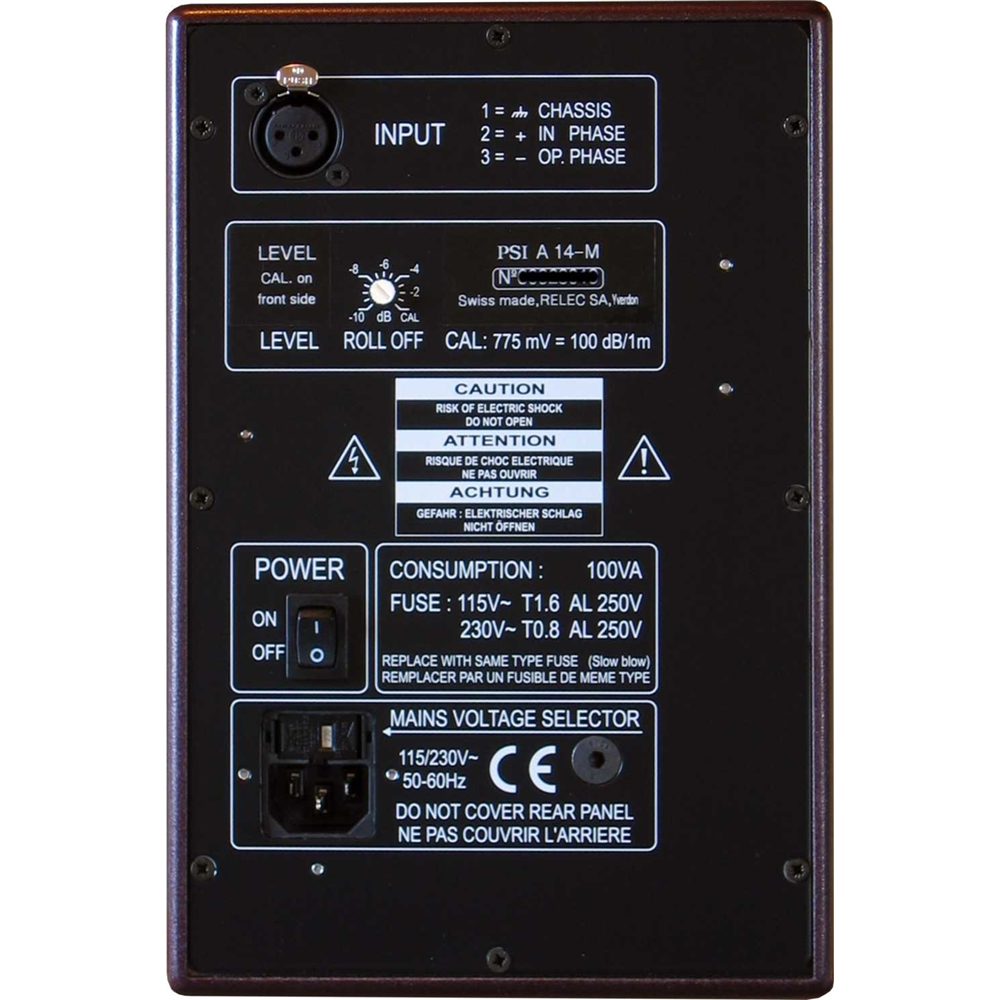

Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 163 x 243 x 170
Gross / Net Weight: 6.2 / 5.5 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
External Temperature: 5 - 40°C
SAE Studenten bitte EDU Konditionen anfragen, merci
Abholung im UP BEAT oder
Termin-Lieferung mit TNT (Palette) Empfänger muss zuhause sein, Preis bitte anfragen
Weitere Informationen: http://www.psiaudio.com/en/our-products/a14-m-studio/
Downloads
PSI_A17_MS1_techdata.pdf (0.09 MB)
UserManual PSI_5_0.pdf (0.21 MB)
PSI_Audio_Brochure_2015.pdf (2.97 MB)
