PSI AUDIO A214 M - Studio Red Center 1 Stk.
Hersteller: PSI AUDIO
Weitere Informationen:
http://www.psiaudio.com/en/our-products/a214-m/
2466,00 CHF
Produktbeschreibung
“The A214-M are incredibly powered for the size” – Terry Nelson from Realisason, France
Product Description

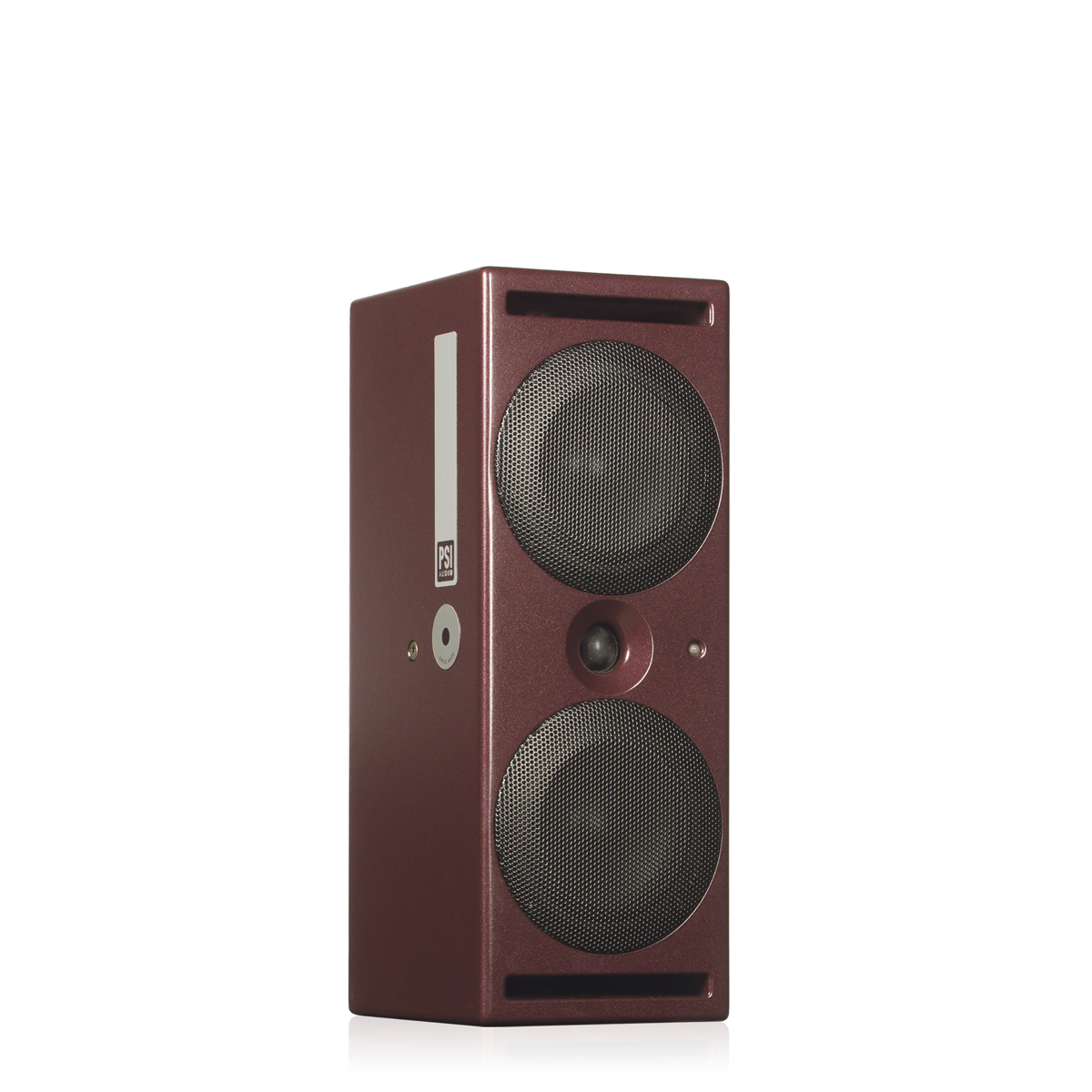

PSI Audio A214-M is mainly designed as a “centre” speaker for surround monitoring applications. However, the unit may also be used as a basic component for all monitoring requirements.
The A214-M employs two woofers of 147mm and one tweeter of 100mm, for a programme power-handling of 160W. The speaker has sufficient acoustical output to satisfy the requirements of post-production and film mixing suites, as well as for other mixing applications.
PSI active loudspeakers feature CPR (Compensated Phase Response) and AOI (Adaptive Output Impedance) technology that is a hallmark of the company. A major advantage is that it allows monitor systems to be made up from different models, without any detriment to the overall phase response of the system.
The shallow height of the A214-M (less than 200mm) allows the speaker to be easily incorporated into surround installations where space is an important factor
Product Key Features
Very high SPL in a compact cabinet.
Flat frequency response.
Real symmetrical directivity.
Class G low temperature amplifier stage.
Optional metal bracket.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
Phase and amplitude response compatible with all PSI Audio monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.
Product Data
Power RMS: 120 + 40W
Program Power: 160W
Input Impedance: Sym, 10k Ohms
Sensitivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 108 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 119 dB (pair)
Response at -6dB: 53 - 23000 Hz
Tolerances: ±2.0 dB (60Hz - 20kHz)
Distortion THD: less than 1.2% (120Hz-12kHz)
Phase tolerances: ±45° (270Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 60° (H x V)
System: 2 Way(s)
Crossover frequency: 1.8 kHz
Woofer's dim. Ext. / Diaphragm: 2x Ø 147 mm / Ø 104 mm
Tweeter's dim. Ext. / Diaphragm: Ø 100 mm / Ø 25 mm
Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 166 x 446 x 200
Gross / Net Weight: 11.2 / 10.2 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.2 - 5 - 150 W
Mean / Max Humidity: less than 75% / less than 90%
External Temperature: 5 - 40°C
SAE Studenten bitte EDU Konditionen anfragen, merci
Abholung im UP BEAT oder
Termin-Lieferung mit TNT (Palette) Empfänger muss zuhause sein, Preis bitte anfragen
Weitere Informationen: http://www.psiaudio.com/en/our-products/a214-m/
Downloads
PSI_A21_MS1_techdata.pdf (0.22 MB)
UserManual PSI_5_0.pdf (0.21 MB)
PSI_Audio_Brochure_2015.pdf (2.97 MB)
