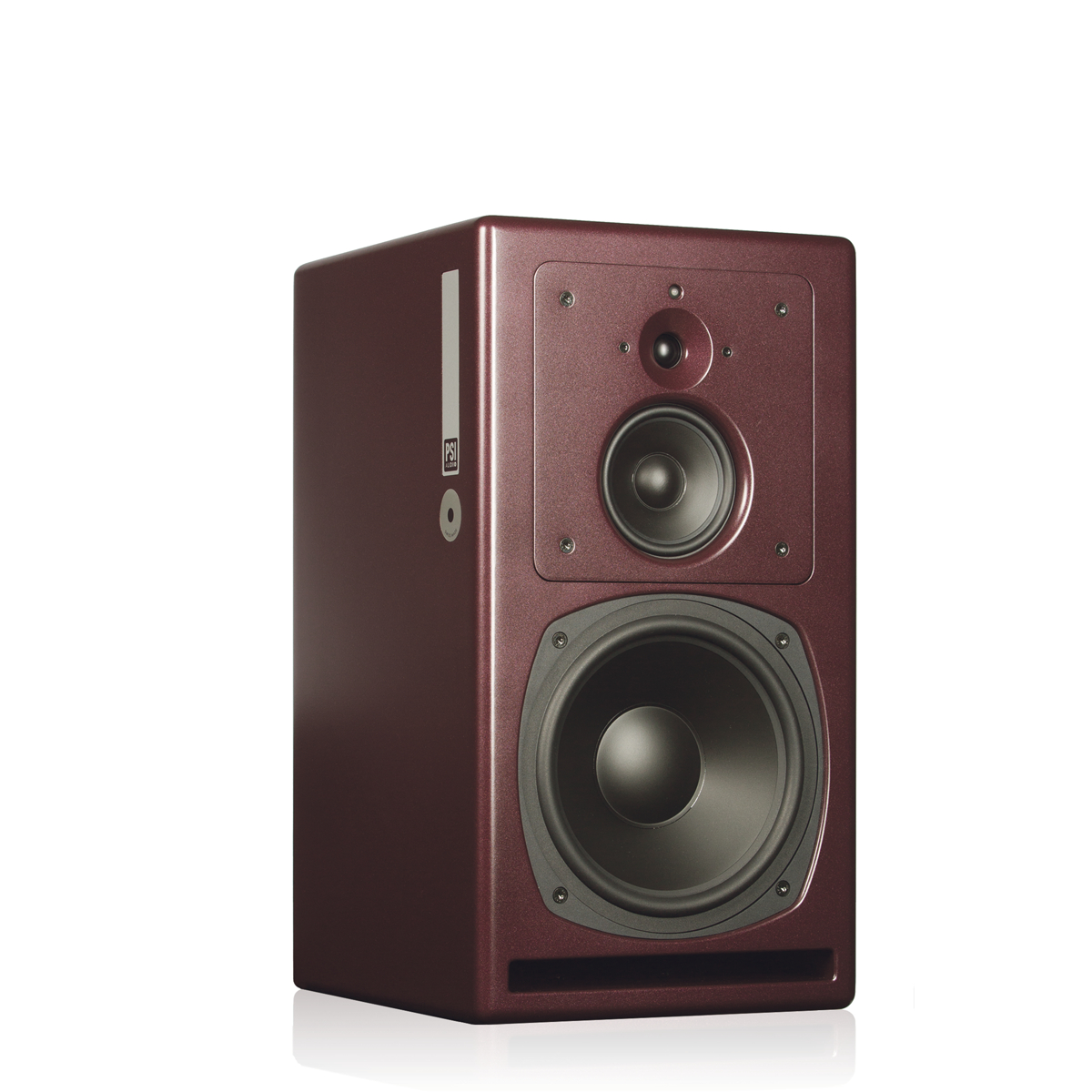

PSI AUDIO A25-M - Studio Red (PaarPreis)

Hersteller: PSI AUDIO

Weitere Informationen:
http://www.psiaudio.com/en/our-products/a25-m/

11178,00 CHF

  • Lieferzeit voraussichtliche 2-3 Tage vom Vertrieb zu uns


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung



“The sound is very detailed, a lot of transients, very detailed in the highend, imaging is very accurate. You can hear compression artefacts crystal clear…”






Product Description



The pinnacle of current PSI Audio system development, the A25-M main / mid-field reference monitor features a staggering precision of +/- 1.5 dB tolerance between 38Hz and 20KHz.



The tweeter unit is hand-crafted in-house in order to ensure performance and accuracy. These highly optimised features make the A25-M unique. A true reference speaker for stereo and surround sound applications where ultimate precision is required. The powerful tri-amplified output stages features the unique “AOI” output stages and has a protection circuit, which can be monitored via the red LED on the front panel. The active crossover, with integrated “CPR”, gives the A25-M unprecedented impulse behavior – with excellent stereo imaging.



The crossover is also optimized for maximum phase coherence, which allows for a very broad horizontal and vertical ideal listening area. Tilting the mid-high range unit by 90° maintains the directivity accuracy when using the speaker horizontally. The A25-M’s electronics are housed in a unit mechanically isolated from the speaker cabinet to avoid resonance at high sound pressure levels.



Designed to work in harmony with the full range of A series monitors the A25-M also makes ideal front speakers in a surround sound setup, or can be developed in to a more powerful system by adding the pair A225-M sub – thus providing an upgrade path and protecting your investment.





Product Key Features

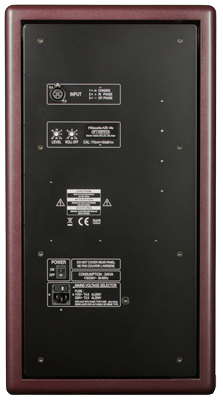

A25-M BackTweeter unit hand made by PSI Audio.
Flat frequency response.
Optimised directivity by phase coherency.
Class G low temperature amplifier stage.
Rotation of mid-range section for horizontal use.
Compatible with industry standard mouting systems.
Amplifier unit acoustically uncoupled from speaker cabinet.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.





Product Data


Power RMS: 170 + 80 + 50 W
Program Power: 300 W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 110 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 121 dB (pair)
Response at -6dB: 32 - 23000 Hz
Tolerances: ±1.5 dB (38Hz - 20kHz)
Distortion THD: less than 1% (70Hz-20kHz)
Phase tolerances: ±45° (150Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 80° (H x V)
System: 3 Way(s)
Crossover frequency: 580Hz, 3.1kHz
Woofer's dim. Ext. / Diaphragm: Ø 258 mm / Ø 210 mm
Medium's dim. Ext. / Diaphragm: Ø 142 mm / Ø 102 mm
Tweeter's dim. Ext. / Diaphragm: Ø 100 mm / Ø 25 mm
Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 320 x 590 x 380
Gross / Net Weight: 30.6 / 26.9 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.8 - 8 - 200 W
Mean / Max Humidity: less 75% / less than 90%
External Temperature: 5 - 40°C



Review: PSI Audio A17-M & A21-M tested by Hugh Robjohns in Sound on Sound Magazine



SAE Studenten bitte EDU Konditionen anfragen, merci

Abholung im UP BEAT oder

Termin-Lieferung mit TNT (Palette) Empfänger muss zuhause sein, Preis bitte anfragen




Weitere Informationen: http://www.psiaudio.com/en/our-products/a25-m/
