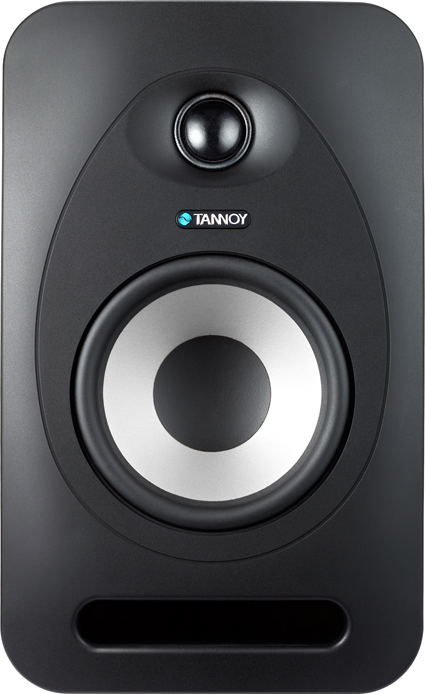

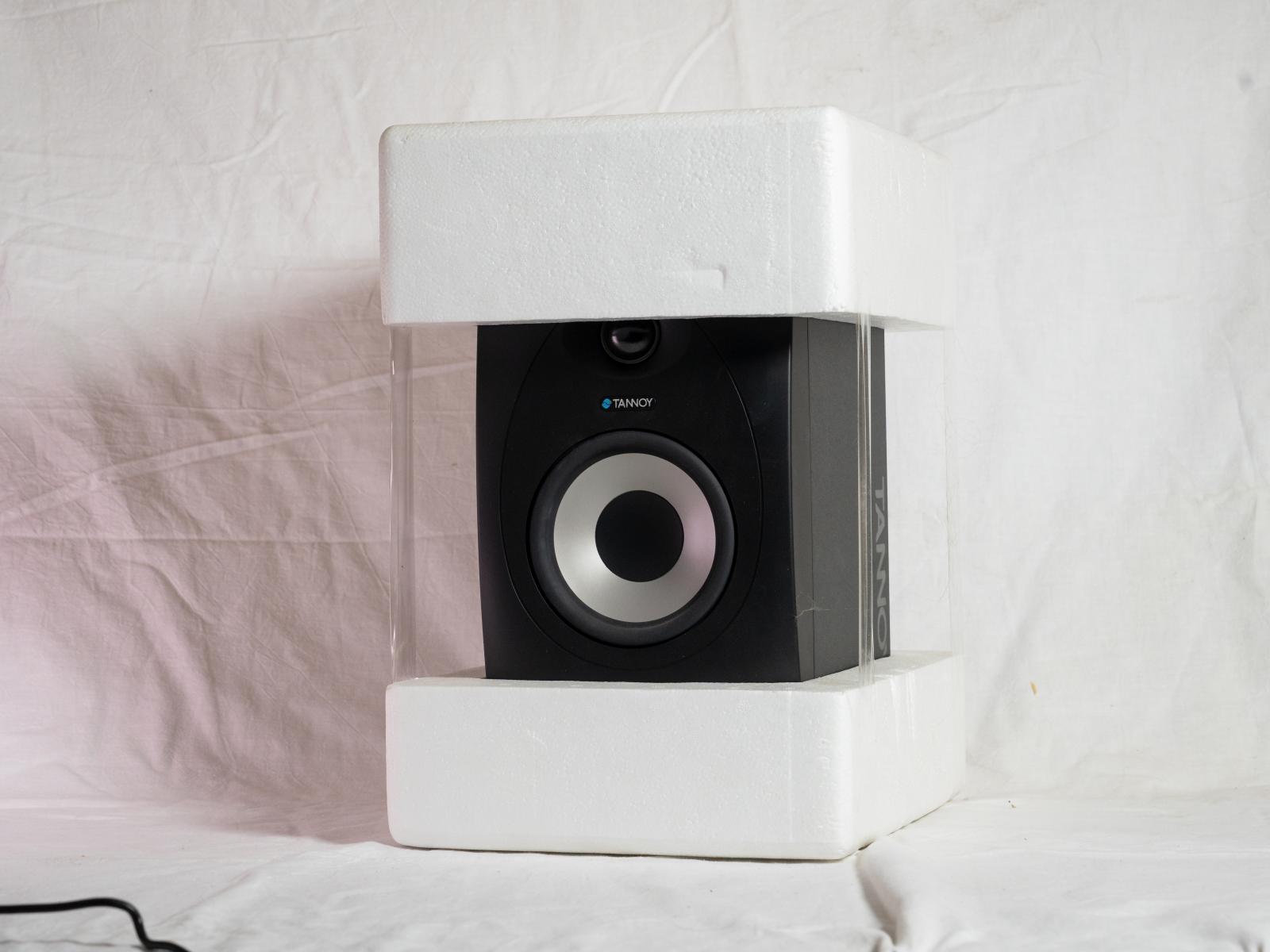

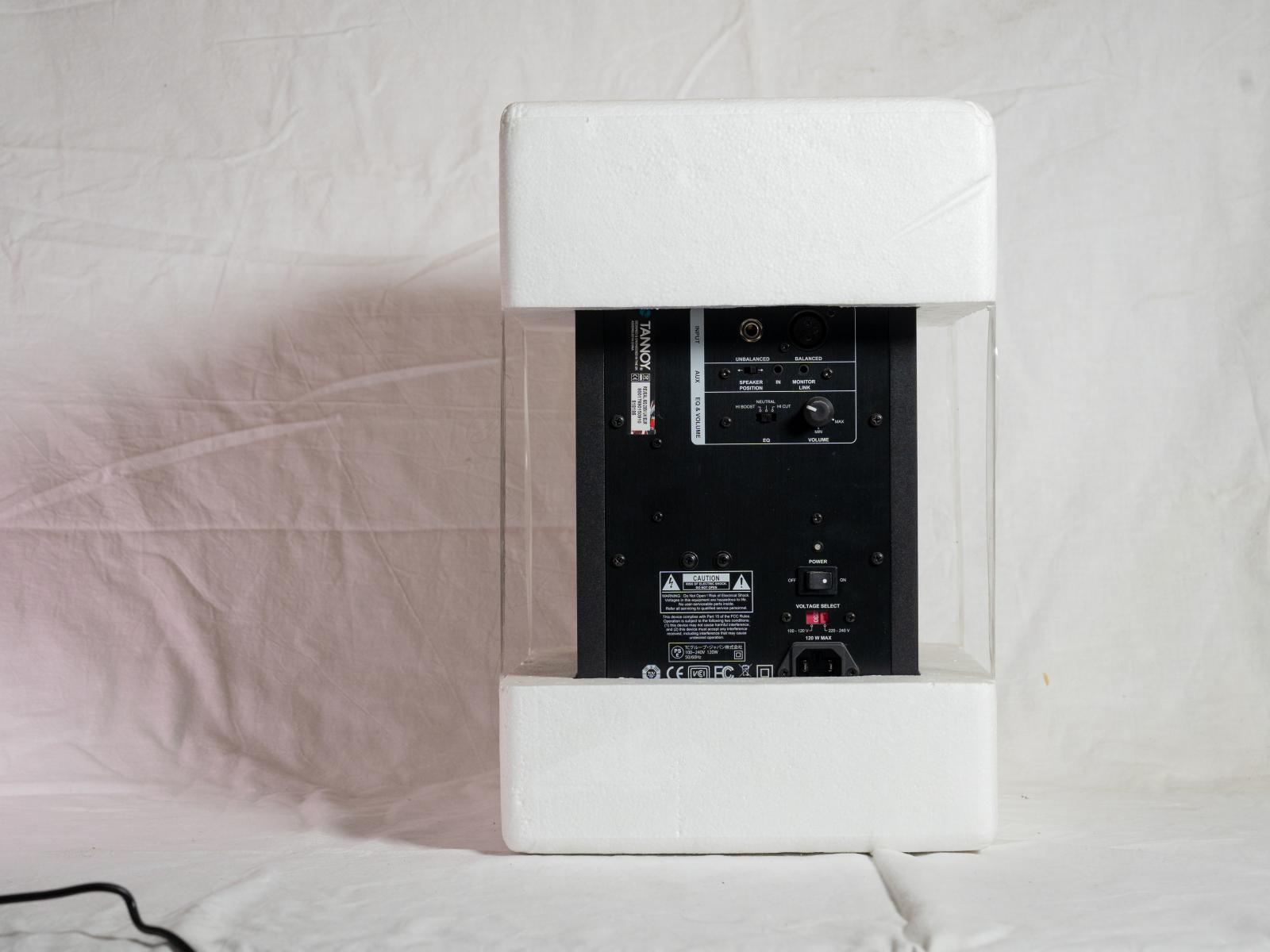

Tannoy Reveal 502 (Occasion)

Expertly Voiced for Massive Sweet Spot

Custom tweaked by Tannoy’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of Reveal 502 have absolutely impeccable timing.

This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.

Easy setup option with Aux LINK

If you’re anything like us, you’re not only working on mixes but also listening to your favorite music! Reveal 502 gives you the ultimate pathway for both.

With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces

Tech Specs

General
Frequency Response
49 Hz -43 kHz
Max SPL
108 dB

Membrane Sizes
LF/Mid Range
5" (130 mm)
HF
1" Soft Dome (25 mm)

Bi-amp Output Power, RMS
Power Output
75 Watts
LF/Mid Range
50 Watts
HF
25 Watts
THD
< 0.7 %

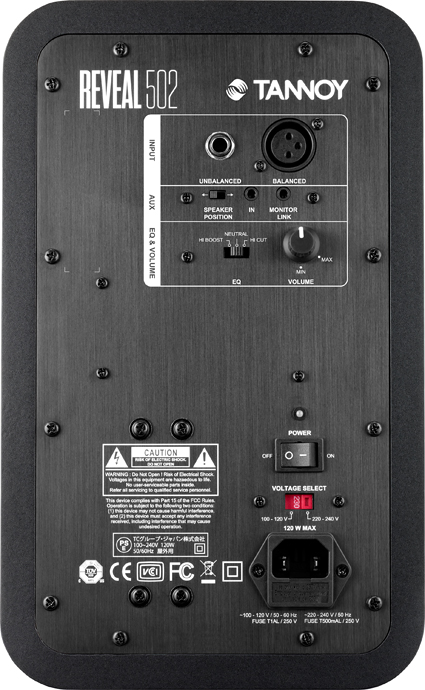

Input Types and Impedances
Balanced
XLR, 20 kOhm
Unbalanced
¼" Jack, 10 kOhm
AUX Link
Mini Jack, 10 kOhm
AUX Link Output
Mini Jack

EQ Options
HF EQ Settings
-1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
Crossover Frequency
2.3 kHz
Low Frequency Alignment
Optimized Front Port

Cabinet Dimensions
HxWxD, inches
11.8 x 7.2 x 9.4
HxWxD, mm
300 x 184 x 238

Stk. 149.- / Paar Fr. 298.-

Weitere Informationen: http://www.tannoystudio.com/reveal-502/
