Moog DFAM Drummer from another Mother

an Lager (19.4.2024)

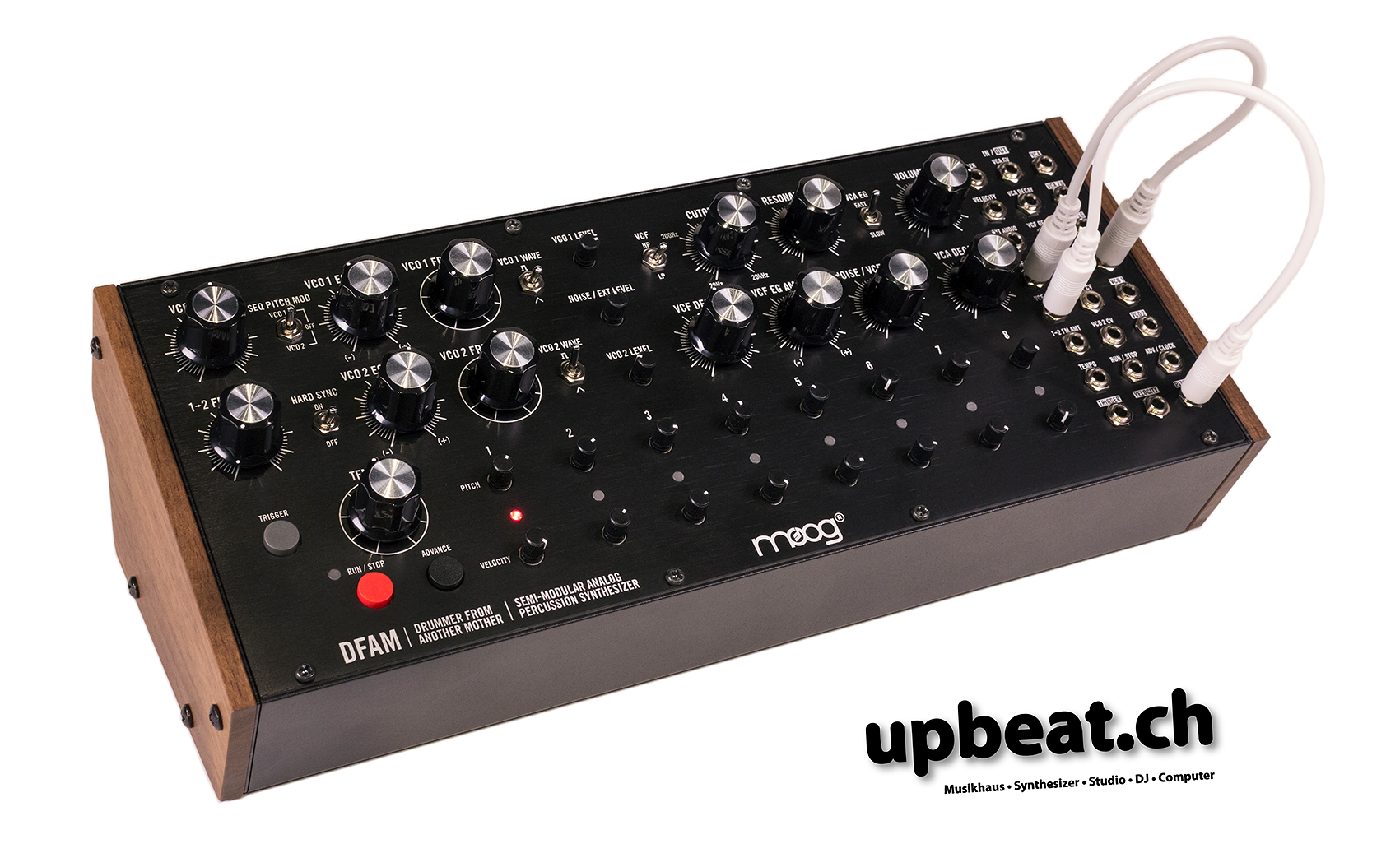

Drummer From Another Mother (DFAM)

ist ein hochinteraktiver, semimodularer analoger Percussion-Synthesizer und eine erfrischende Abwechslung zur traditionellen Drum-Maschine.

Als erster Zuwachs in der Mother32-Familie ist er das perfekte Tool zur Kreation von perkussiven Sounds. Das intuitive Konzept erlaubt den sofortigen kreativen Einsatz ohne Vorkenntnisse.

- Semi-Modular - kein Patchen erforderlich um eindrucksvolle analoge Rhythmen zu kreieren.

- 100% Analog- uneingeschränkte Klangflexibilität für lebenslange, perkussive Inspiration.

- 2 Oszillatoren- decken das Spektrum ab von subtil pulsierenden Kadenzen bis hin zu bodenschüttelnden Bässen.

- Analoges Filter- modellieren Sie Ihren Sound mit einem Low- oder High-Pass Ladder Filter.

- 3 Hüllkurven- interagieren Sie dynamisch mit der Anschlagstärke, um Ihrem Sound "menschliche" Variationen zu verleihen.

- 8-Step Analog Sequenzer - kontinuierliche Kontrolle über jede Note.

- 24 Patch Points - erforschen Sie modulare Patches oder verbinden Sie sich mit einem MOOG Mother-32.

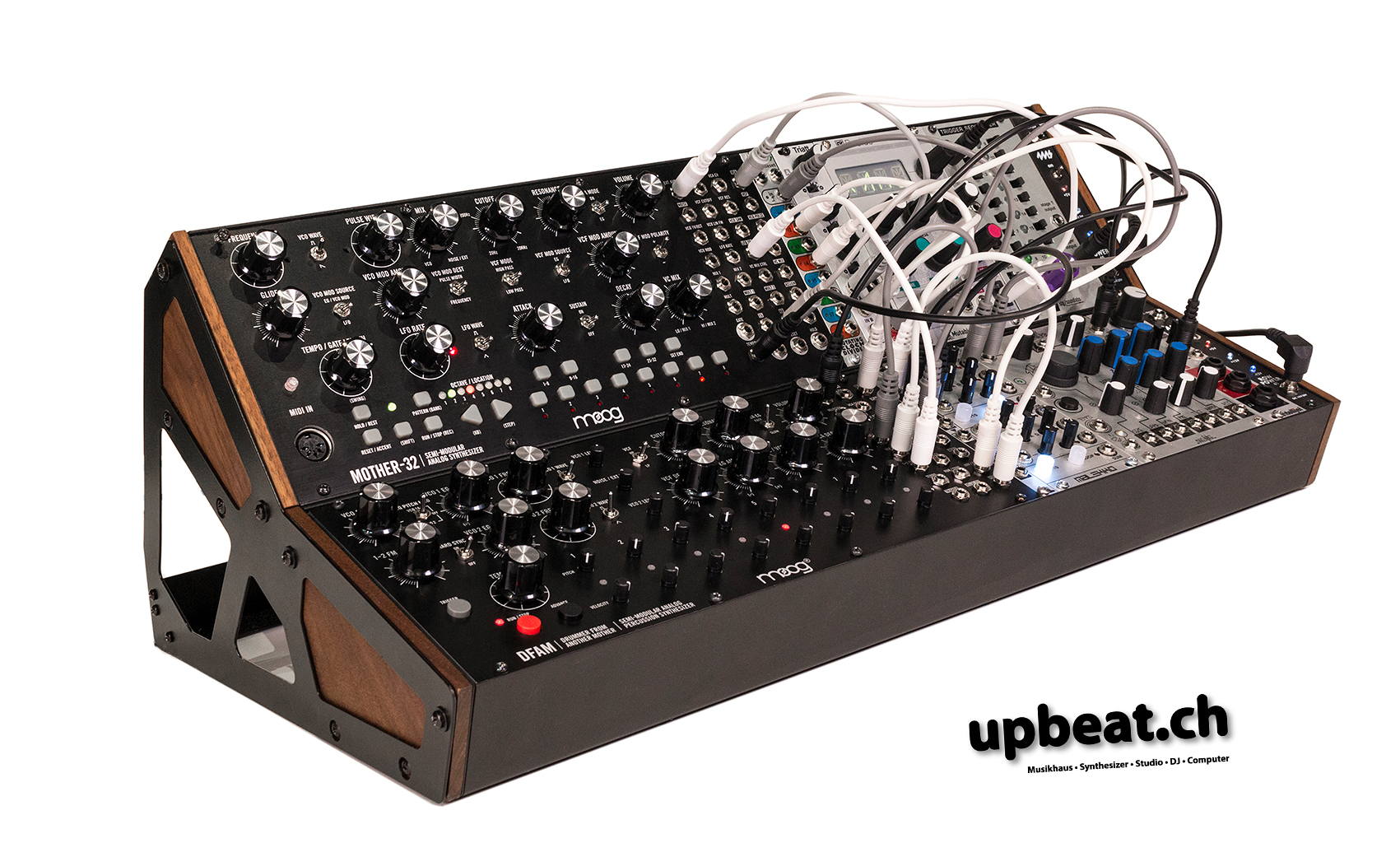

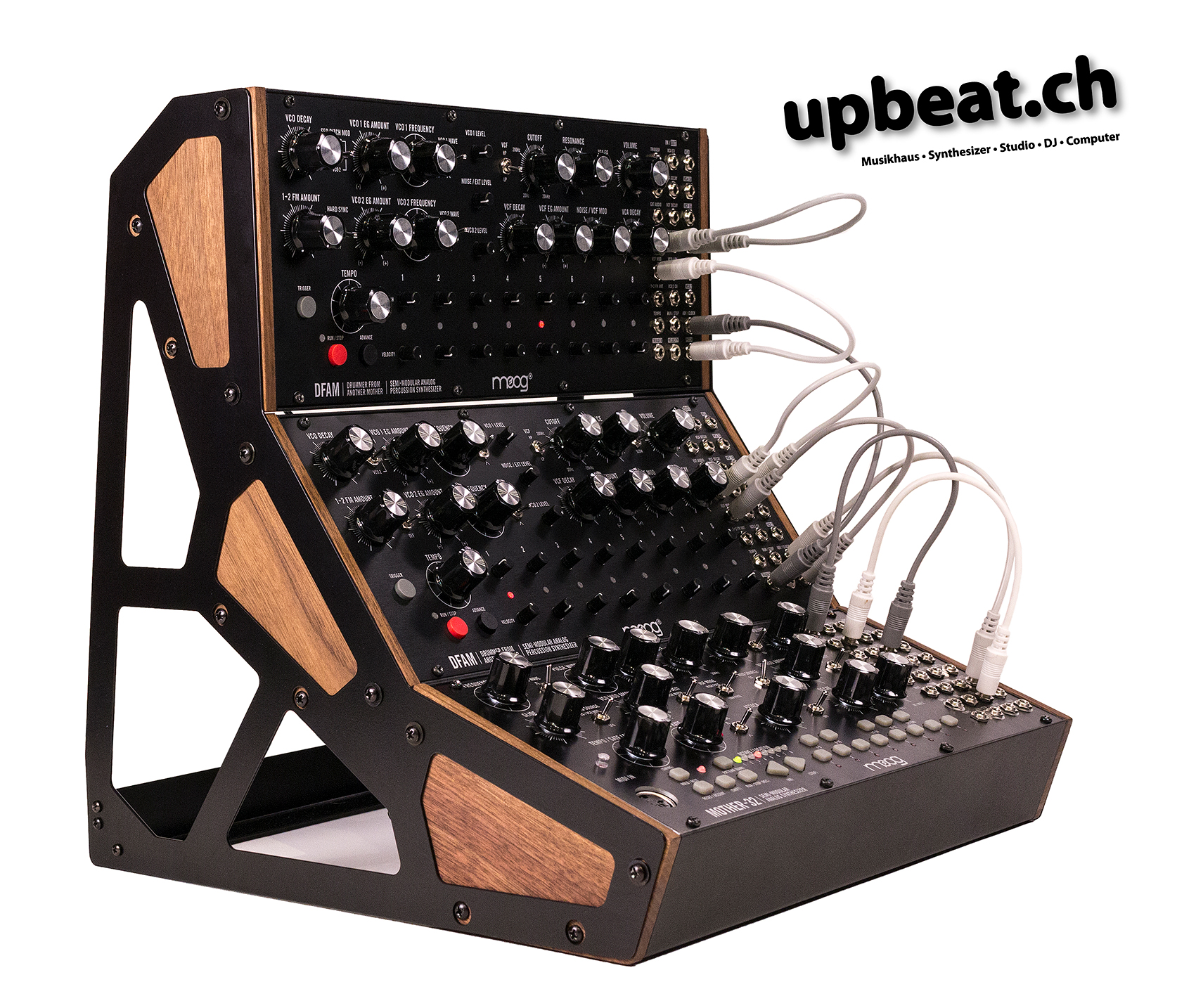

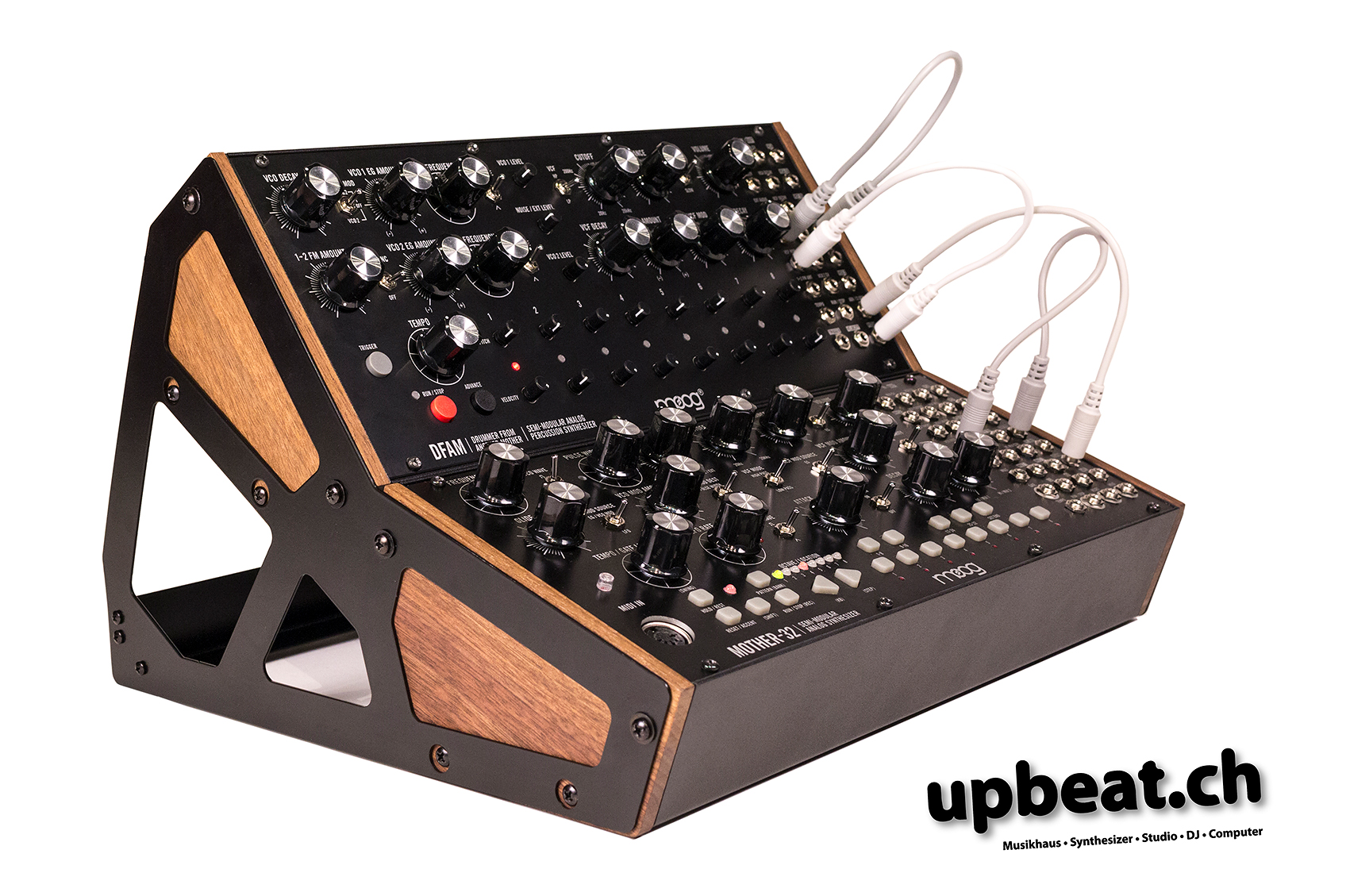

- Link Multiple Units - schliessen Sie mehrere DFAM- und Mother-32-Einheiten zusammen um stimmungsvolle analoge Kompositionen zu kreieren.

- Externer Audioeingang - bearbeiten Sie externe Klänge mit dem DFAM.

- EURORACK Kompatibel

DFAM is the first addition to the Mother ecosystem of synthesizers and presents an expressive hands-on approach to percussive pattern creation. It requires no patching, and absolutely no experience is needed for human-beings of any age to quickly begin synthesizing new and unique rhythmic compositions.

Activated by an easy-to-use analog sequencer, DFAM’s emotive sound begins with a white noise generator and two wide-range analog oscillators - effortlessly transitioning between rhythmic pulsations, resounding bass and resonant bells in an instant. DFAM’s distinctive voice is then shaped by a classic Moog Ladder filter with two selectable modes: Low Pass mode imparts impact and dimension to each sound it touches, while High Pass mode opens the door to naturally expressive strikes, spikes and clangorous accentuations.

DFAM behaves much like a living organism, reacting in different ways to different individuals. 3 dedicated analog envelopes work dynamically with the sequencer to ensure that tribal toms breathe, industrial impacts evolve, and sonic chaos can be created or subdued at the turn of a knob.

Each DFAM ships with a package of Moog patch cables that unlock access to the 24-point modular patchbay. Use it to create new sounds or bizarre behaviors, synchronize an unlimited number of DFAM and Mother-32 units together, or fully integrate your analog instrument into a modular Eurorack production environment.

Through exploration and experimentation, the vast potential of this expressive analog instrument is realized.

SOUND ENGINE: Analog

ANALOG SEQUENCER: 8-Steps With Pitch and Velocity Per-Step

SEQUENCER PANEL CONTROLS: Tempo, Run/Stop, Trigger, Advance

SOUND SOURCES: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Input

FREQUENCY CONTROL: +/- 5 Octaves (10 Octave Range)

MIXER: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input

FILTER: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter

ENVELOPES: VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/ Voltage Controlled Decay and Selectable Fast/Slow Attack Time

PATCHBAY: 24x 3.5mm Jacks

PATCHBAY INPUTS: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1→2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock.

PATCHBAY OUTPUTS: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.

AUDIO OUTPUT: ¼” TS Line / ¼” TRS Headphones (Shared Output Jack)

INCLUDED POWER SUPPLY: 100-240VAC; 50-60Hz, +12VDC 1200mA

POWER CONSUMPTION: 3.0W

EURORACK CURRENT DRAW: 230mA (+12V – from 10-pin header)

EURORACK MOUNTING DIMENSIONS: 60HP (1”/26mm Module Depth)

WEIGHT: 3.5lbs

DIMENSIONS: 12.57”W x 4.21“H (with knobs) x 5.24“D

Re: DFAM and Korg SQ1

• Quote

Post by KrisL » Wed Jun 13, 2018 1:25 pm

Yes, it works fine through the SQ1.

However, the sequencer pattern will be slaved through the 8-beat pattern, irrespective of time signature i.e. if you have a 5/8 pattern, it will be played through the accent groupings you have programmed on the DFAM. Which can, in itself, create some interesting effects.

The 5-step pattern will be repeated, but step 1 of bar 2 will fall on beat 6 of the DFAM, bar 3 will fall on beat 3, bar 4 on beat 8 etc i.e. the entire sequence will repeat itself a x b (think mod 8 for where the accents etc will fall), with a being the sequencer time signature, and b being the DFAM beat pattern (i.e. 40 beats in this example).

You can also get non - 4/4 by patching tempo to pitch. At highest frequency setting, the DFAM will essentially 'skip' that step.

I'm posting a few vids at present of the DFAM in various uses, you may find them useful (I'm doing one soon illustrating what you mention above). Here's a link to one from where you'll be able to find some other bits & bobs I've created on the DFAM - https://www.youtube.com/watch?v=OAbVXWJWesY

All best
