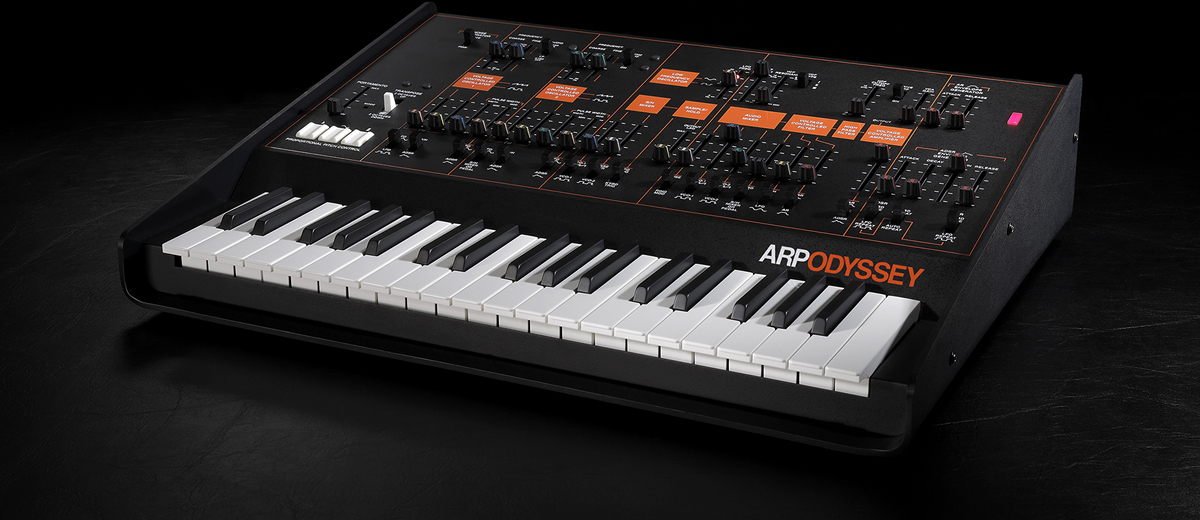

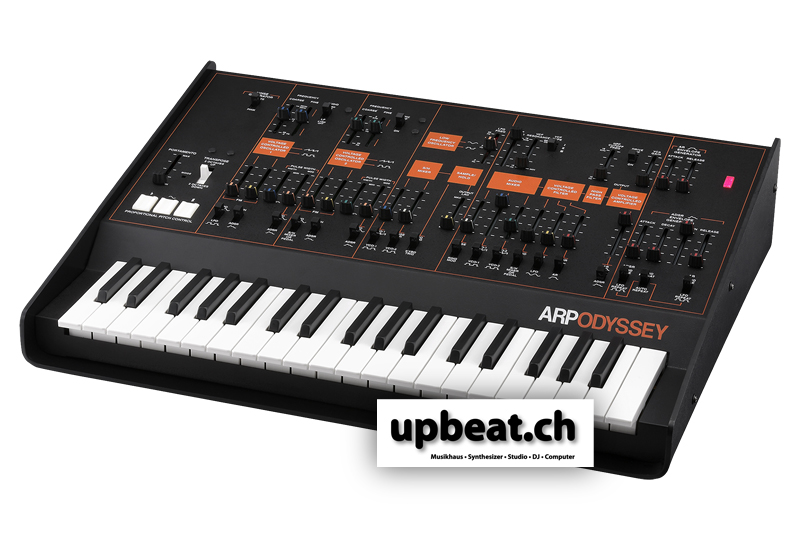

Korg ARP Odyssey Rev 3

In conjunction with Arp Instruments Inc., Korg Inc. has revived

the legendary analog synthesizer, the ARP ODYSSEY.

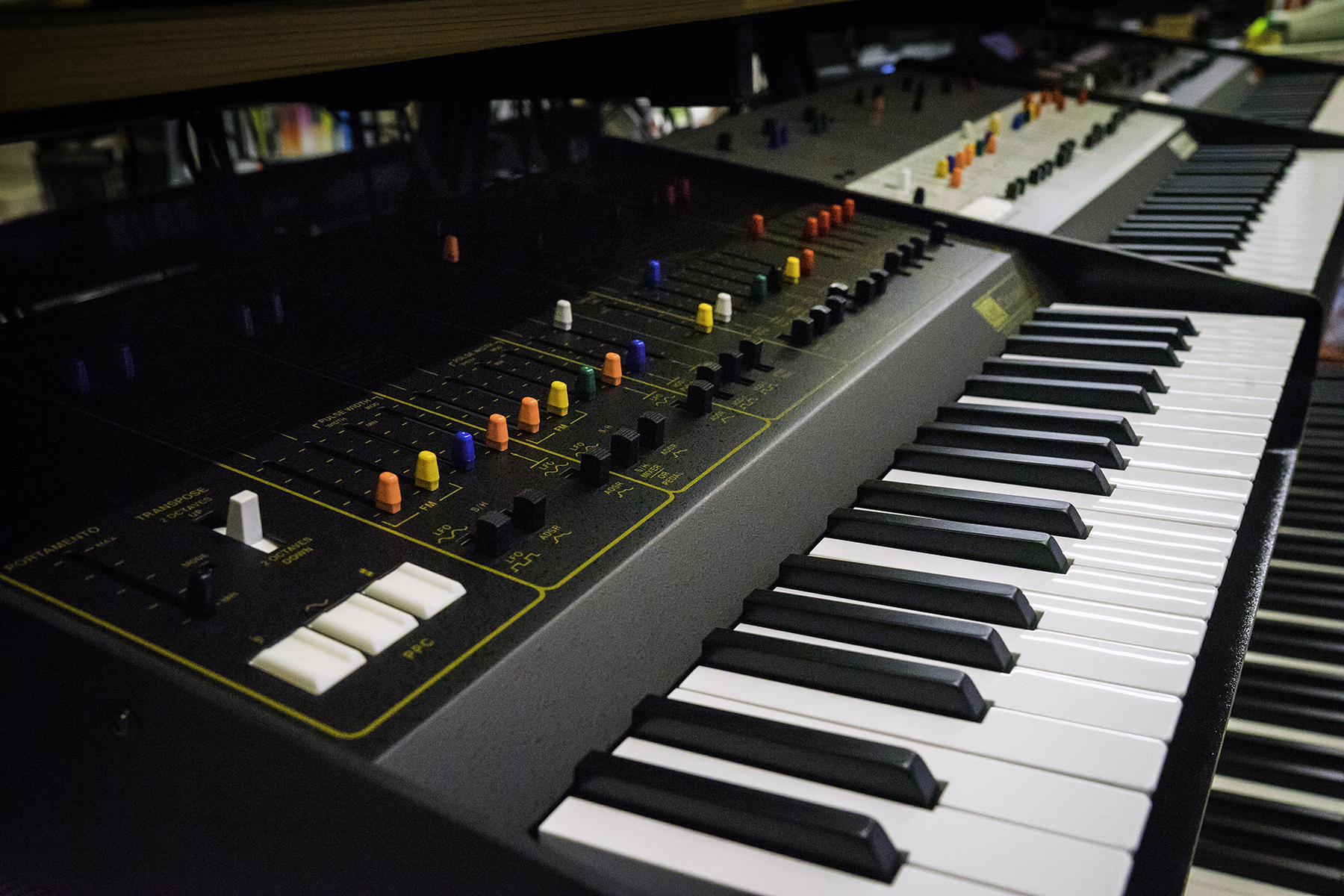

Originally produced in 1972, the ODYSSEY quickly garnered a faithful following among musicians.

Well respected for its high value, ease to play and portability, the ARP ODYSSEY had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

Specifications :

Keyboard
37-note (Slimkey, No velocity sensitivity, No aftertouch)

Maximum Polyphony
2 voices for duophonic; normally monophonic

Controllers

Transpose Positions
2 octaves down, normal, 2 octave up

Proportional Pitch Control
b (Pitch down) Pad: about -2 / 3 octave
- (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave

Noise Generator
Noise Spectrum Types (white and pink)

Portamento

Maximum Speed
about 0.01 msec./oct

Minimum Speed
about 1.5 sec./oct

VCO (Voltage Controlled Oscillator)

Waveforms
Sawtooth, Square, Pluse (Dynamic Pluse)

Frequency Range
VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1
and VCO-2 (audio range) about 20 Hz – 20 kHz

Warm Up Drift
1/30 semitone from turn on max

Pulse Width
50 % – 5 %

Pulse Width Modulation
ADSR, +45 %
LFO, +15 %

Voltage Controlled Response:
1 V/oct

Maximum Frequency Shifts
LFO sin wave, +1/2 oct.
LFO square wave, +1.5 oct.
ADSR, +9 oct.
S/H, +2 oct.

* VCO-1 is low note priority, VCO-2 is high note priority.

VCF (Voltage Controlled Filter)

Types
Low pass (I: 12 dB/oct., II III: 24 dB/oct.)

Frequency Range
16 Hz - 16 kHz

Maximum Usable Q
30

Resonance
1/2 - self oscillate

Voltage Controlled Response
C3 key (left edge): 0 V
C6 key (right edge) 3 V

VCA (Voltage Controlled Amplifier)

Dynamic Range
80 dB

Ring Modulator

Type
Digital

Input Signal
VCO-1, VCO-2 (square wave)

Sample & Hold

Command Sources
Keyboard or LFO trigger

Sampled Signals
VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise

ADSR Envelope Generator

Attack Time
5 msec. - 5 sec.

Decay Time
10 msec. - 8 sec.

Sustain Level
0 - 100 % or Peak

Release Time
15 msec. - 10 sec.

AR Envelope Generator

Attack Time
5 msec. - 5 sec.

Release Time
10 msec. - 8 sec.

Control Input Jacks

Pedal
φ6.3 mm monaural phone jack

Portamento Foot Switch
φ6.3 mm monaural phone jack

Audio Output Jacks

LOW
Connector: φ6.3 mm monaural phone jack
Maximum Output Level: -20 dBu@ 10 kΩ load
Output Impedance: 10 kΩ

HIGH
Connector: XLR connector
Maximum Output Level: +4 dBu@ 1 kΩ load
Output Impedance: 330 Ω

Headphones Jack

Connector
φ6.3 mm stereo phone jack

Maximum Output Level
50 mW + 50 mW@ 33 Ω load

Output Impedance
10 Ω

* Controllable by volume knob.

External Audio Input (Ext Audio Input) Jack

Connector
φ6.3 mm monaural phone jack

Maximum Input Level
-10 dBu

Input Impedance
22 kΩ

MIDI Connector
IN

USB Connector
Type B

CV IN/OUT Jacks

Keyboard CV (IN/OUT)
1 V/oct.

Connector
φ3.5 mm monaural phone jack

GATE IN/OUT Jacks

GATE IN
+3 V (minimum)

GATE OUT
+10 V, key down; 0 V all keys up

Connector
φ3.5 mm monaural phone jack

TRIG IN/OUT Jacks

TRIG IN
+3 V pulse min., 10 μsec. Duration minimum

TRIG OUT
+10 V pulse on key depression, 10 μsec. Duration

Connector
φ3.5 mm monaural phone jack

Power Supply
AC adapter jack (DC 9 V)

Power Consumption
6.5 W

Dimensions (W x D x H)
502 x 380 x 120 mm / 19.76" x 14.96" x 4.72"

Weight
5 kg / 11.02 lbs

Accessories
AC adapter, phone cable, mini-phone cable, owner’s manual,

dedicated semi-hard case inklusive !

Options:
VP-10 Volume Pedal, PS-1/PS-3 Pedal Switch

* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.

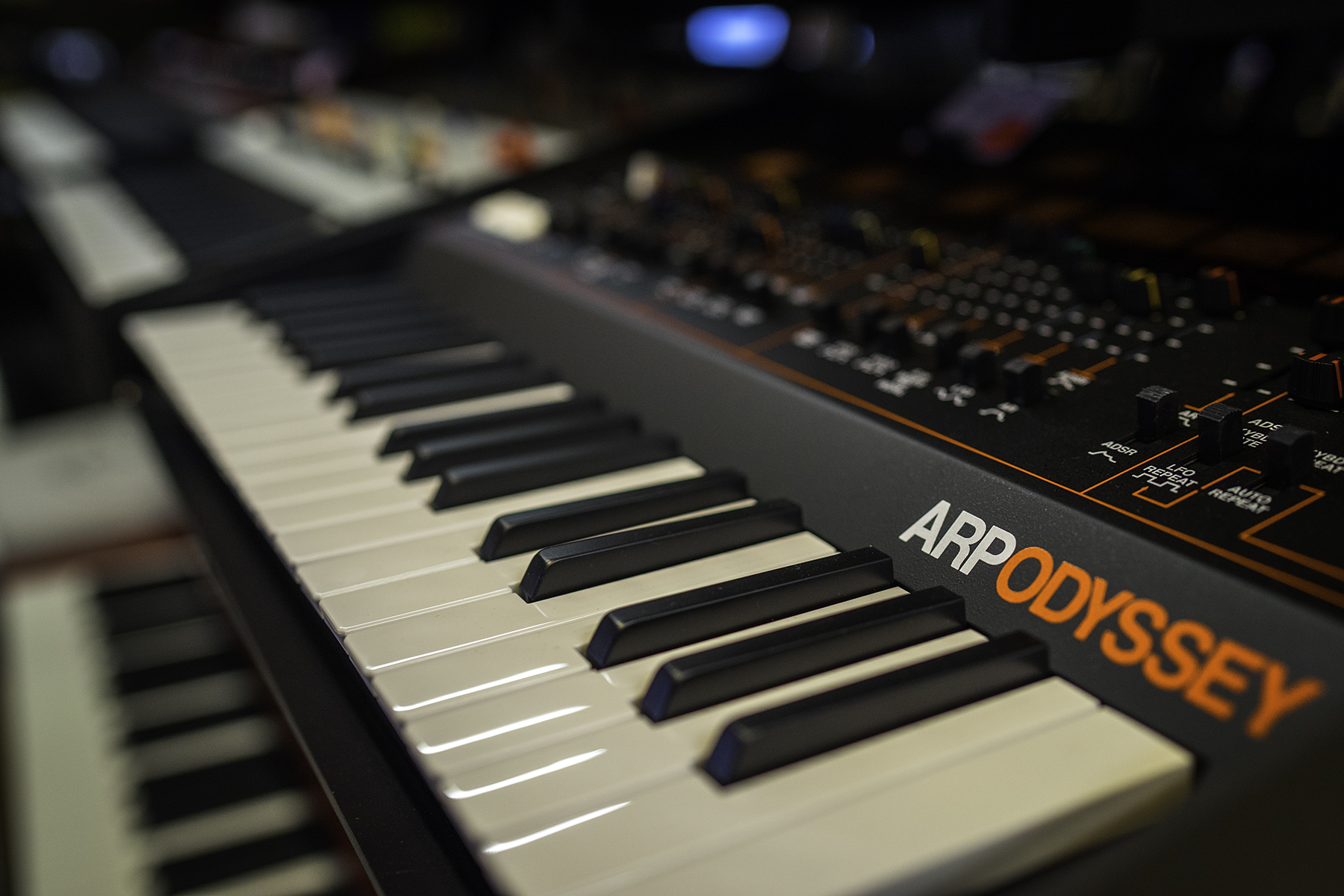

Now in 2015, Korg has brought back the ARP ODYSSEY for today while preserving the basic design of the original. The new ODYSSEY has a compact body, highly operable sliders, and a 37 note slim keyboard that's easy to play. In addition, a DRIVE switch (new function) is provided and connectors include MIDI and headphone output as well as Patch cables.

"Together the engineers at Korg and Arp were able to nail the sound and feel of the original. Under the advisory assistance of David Friend, the co-founder of ARP Instruments, every detail was adjusted to replicate the original unit's distinctive synthesis," shared James Sajeva, Brand Manager for Korg products. "Every aspect has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case."

Korg has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. The ARP ODYSSEY has been downsized to 86% of the original. Carefully selected parts are used in the familiar slider section, providing an operating feel that's even smoother than the original.

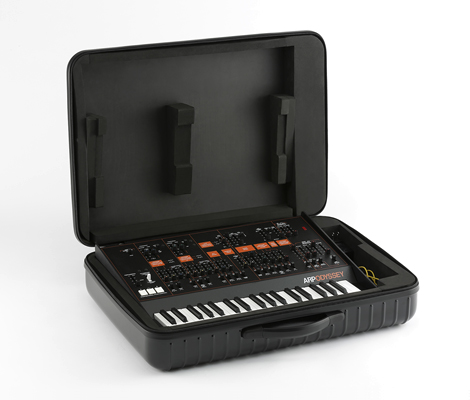

Originales Semihardcase inklusive

Zum Lieferumfang gehört auch ein spezielles Semihardcase für den Transport von Synth und kleinerem Zubehör. Seine schicke schwarze Oberfläche ziert das klassische ARP-Logo. Seine gerippte Schalenstruktur und Ausfütterung sorgen für hervorragende Stoßfestigkeit.
