Eventide Power mini
Hersteller: Eventide
Weitere Informationen:
https://www.eventideaudio.com/products/accessories/power-solution/powermini
140,00 CHF
Produktbeschreibung
an Lager (19.10.2023)

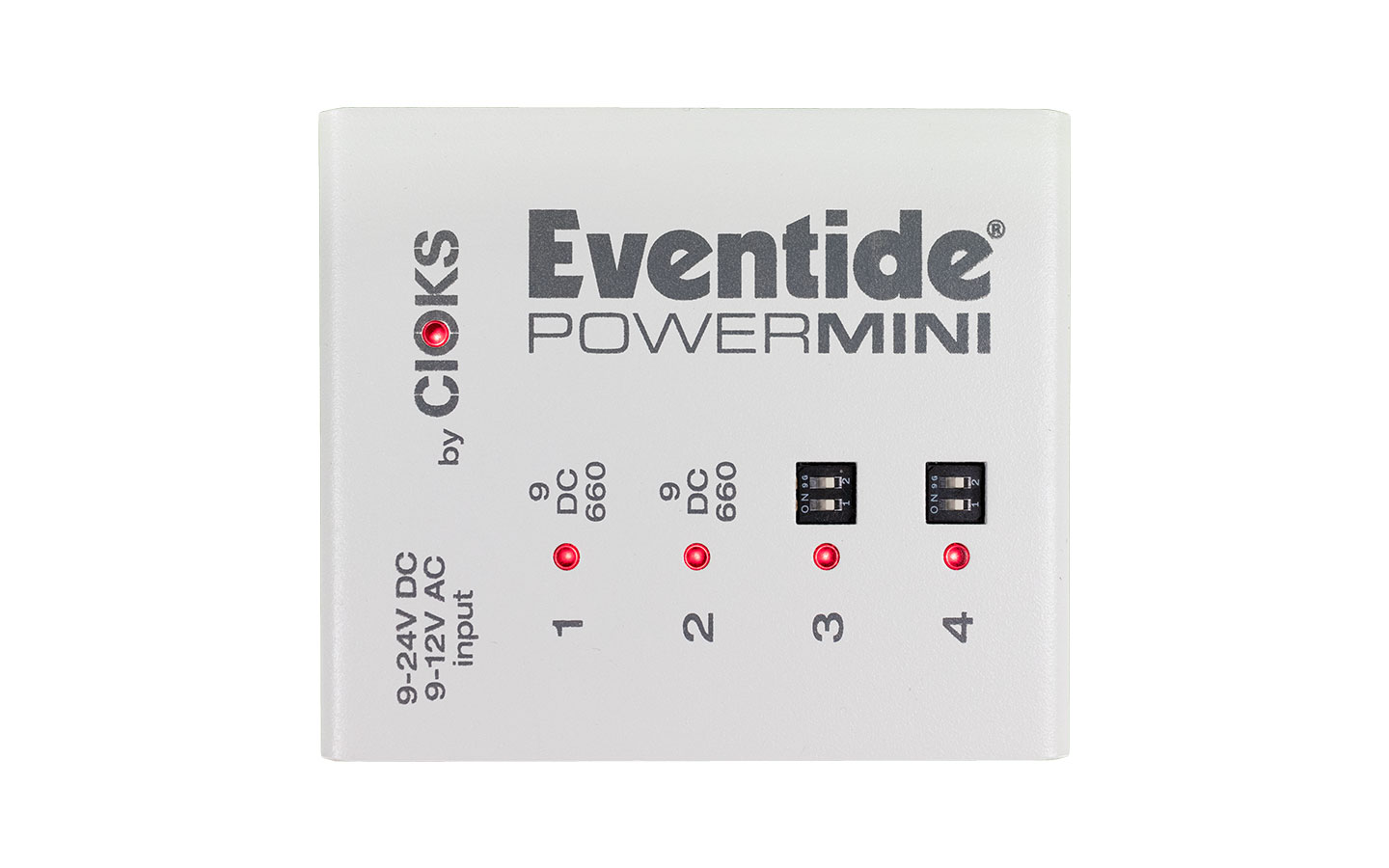

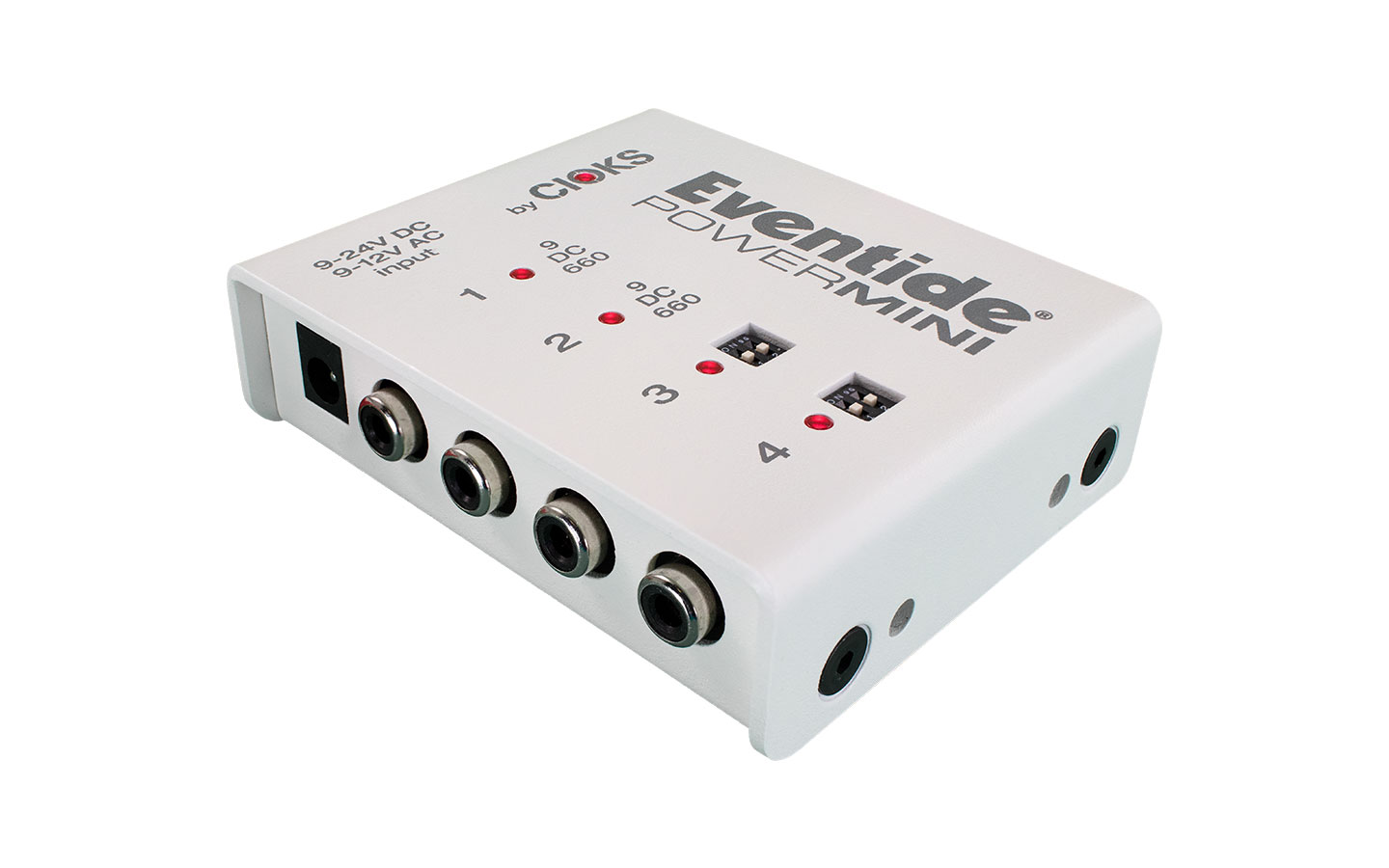

PowerMini
Powerful & Compact Pedalboard Power Solution
PowerMini is a super compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity.
PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15 or 18V). Also available is the PowerMini EXP, which is the perfect companion to PowerMax.
Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go.
Each PowerMini comes with 7 flex cables compatible with most pedal brands.
Features
PowerMini Standalone
24V DC / 36W power adapter with Low-profile inline C7 6’ AC power cord
Mounting hardware (2 screws and a hex-key)
Product sheet (drill guide)
Flex & DC Link cable guide
24V power adapter mounting bracket (needed only if used with wah wah, or inductor-type pedals)
7 Flex Cables:
2 x 1030 - black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 1050 - black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 4050 - green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
1 x 1533 - 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
Specifications
Mains input 9-24V DC, 9-12V AC
Outlets 1-2 9V DC / 660mA
Outlets 3-4 9, 12, 15, 18V DC / 660mA
Size 2.9” x 3.5” x 1.0”
Weight Weight: .507 lbs / 220.9g
Warranty 5 years worldwide
PowerMini
Powerful & Compact Pedalboard Power Solution
PowerMini is a super compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity.
PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15 or 18V). Also available is the PowerMini EXP, which is the perfect companion to PowerMax.
Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go.
Each PowerMini comes with 7 flex cables compatible with most pedal brands.
Features
PowerMini Standalone
24V DC / 36W power adapter with Low-profile inline C7 6’ AC power cord
Mounting hardware (2 screws and a hex-key)
Product sheet (drill guide)
Flex & DC Link cable guide
24V power adapter mounting bracket (needed only if used with wah wah, or inductor-type pedals)
7 Flex Cables:
2 x 1030 - black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 1050 - black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
2 x 4050 - green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
1 x 1533 - 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
Specifications
Mains input 9-24V DC, 9-12V AC
Outlets 1-2 9V DC / 660mA
Outlets 3-4 9, 12, 15, 18V DC / 660mA
Size 2.9” x 3.5” x 1.0”
Weight Weight: .507 lbs / 220.9g
Warranty 5 years worldwide
