IK Multimedia - Z-TONE BUFFER BOOST
Hersteller: IK Multimedia
Weitere Informationen:
https://www.ikmultimedia.com/products/ztonebufferboost/index.php?p=info
207,00 CHF
Produktbeschreibung
an Lager (19.3.2024)
Preamp/DI pedal with advanced tone shaping
Guitar & bass pedalboards are all about exploring new tones & textures, creating a wide range of sound for your instrument. Z-TONE™ Buffer Boost takes your live rig to a new level, letting you shape the sound of your instrument with the input circuits from our award-winning AXE I/O interface.
Change the tone & feel of your guitar or bass, buffer your tone to survive even the biggest pedalboard, kick in the boost and supercharge all your existing gear with a powerful new front-end.
Key Features
The ideal front-end
Z-TONE Buffer Boost offers a high-quality instrument preamp with exceptionally low noise and wide frequency response, and multiple circuit topologies to adapt to any type of guitar, pick-up and style.
Pick your pickup:
PASSIVE: designed to accommodate everything from low-output vintage pickups to hotter modern humbuckers with ultra-low noise and extended frequency response.
ACTIVE: bypasses unnecessary gain stages when using active pick-ups, to keep your signal path as direct, transparent and clean as possible.
Choose your channel:
PURE: a completely transparent and ultra-accurate preamp
circuit that won’t color your sound in any way.
JFET: a Class A JFET input buffer for subtle harmonic
enhancement, midrange focus and warmth.
Tone and feel like you’ve never heard
Guitar pickups can dramatically change their character depending on impedance - many amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change when plugging into different gear.

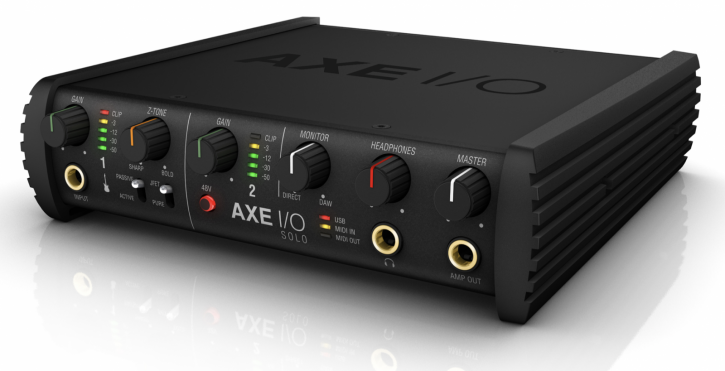

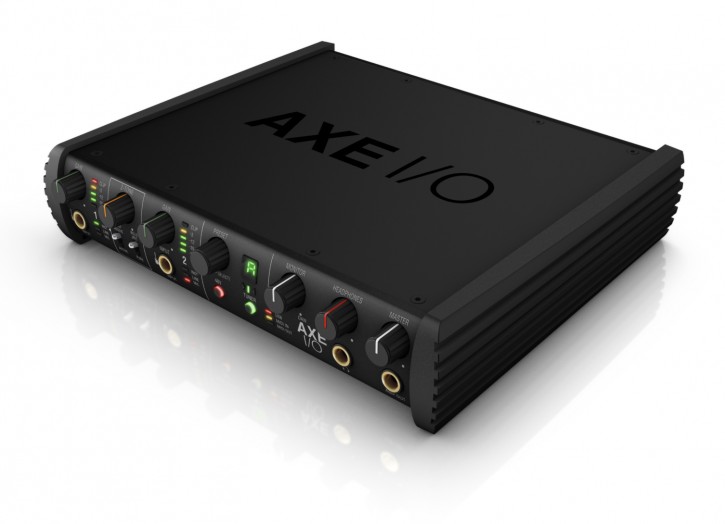

Z-TONE Buffer Boost gives you the same variable impedance control as our groundbreaking AXE I/O interface., from 1 MOhm to 2.2 kOhms. At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes thicker and more bold.
You can use this control to coax a wider range of sounds from a single guitar, experiment with how the rest of your rig reacts to these changes, or dial in exactly the right vibe regardless of what comes next in your chain.
Audio specs
Power
Preamp/DI pedal with advanced tone shaping
Guitar & bass pedalboards are all about exploring new tones & textures, creating a wide range of sound for your instrument. Z-TONE™ Buffer Boost takes your live rig to a new level, letting you shape the sound of your instrument with the input circuits from our award-winning AXE I/O interface.
Change the tone & feel of your guitar or bass, buffer your tone to survive even the biggest pedalboard, kick in the boost and supercharge all your existing gear with a powerful new front-end.
Key Features
- Active/Passive pickup selector
- PURE channel for transparent sound
- JFET channel adds warmth & harmonics
- Z-TONE variable impedance control creates
- a wide range of tones
- Buffers signal for longer pedalboards & cable runs
- Boost circuit adds volume & drive
- Alternate outs for mixers & PAs
- Ground lift switch eliminates buzz & hum
- Designed and made in Italy
The ideal front-end
Z-TONE Buffer Boost offers a high-quality instrument preamp with exceptionally low noise and wide frequency response, and multiple circuit topologies to adapt to any type of guitar, pick-up and style.
Pick your pickup:
PASSIVE: designed to accommodate everything from low-output vintage pickups to hotter modern humbuckers with ultra-low noise and extended frequency response.
ACTIVE: bypasses unnecessary gain stages when using active pick-ups, to keep your signal path as direct, transparent and clean as possible.
Choose your channel:
PURE: a completely transparent and ultra-accurate preamp
circuit that won’t color your sound in any way.
JFET: a Class A JFET input buffer for subtle harmonic
enhancement, midrange focus and warmth.
Tone and feel like you’ve never heard
Guitar pickups can dramatically change their character depending on impedance - many amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change when plugging into different gear.
Z-TONE Buffer Boost gives you the same variable impedance control as our groundbreaking AXE I/O interface., from 1 MOhm to 2.2 kOhms. At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes thicker and more bold.
You can use this control to coax a wider range of sounds from a single guitar, experiment with how the rest of your rig reacts to these changes, or dial in exactly the right vibe regardless of what comes next in your chain.
Audio specs
- I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
- Gain Range: From -8dB to +8dB
- Boost range: From 0dB to +10dB
- Input impedance - Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
- Input impedance - Z-TONE set on ACTIVE mode: Approx 20kΩ
- Output impedance, unbalanced out: 56Ω
- Output impedance, balanced out: 600Ω
- Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
- Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
- Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
- Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
- Frequency response: from 5Hz to 30kHz -1dB
- Phase deviation: 0° +/-10° from 20Hz to 20kHz
Power
- Phantom power: +48V phantom on Balanced output.
- Battery power: 9V
- External DC power: 9VDC, positive outside - not included
- Current consumption from P48 phantom power source: 6.5mA
- Size: 10.8cm/4.25" x 12cm/4.72" x 5.8cm/2.28"
- Weight: 600g/21.2oz
- Z-TONE Buffer Boost unit
